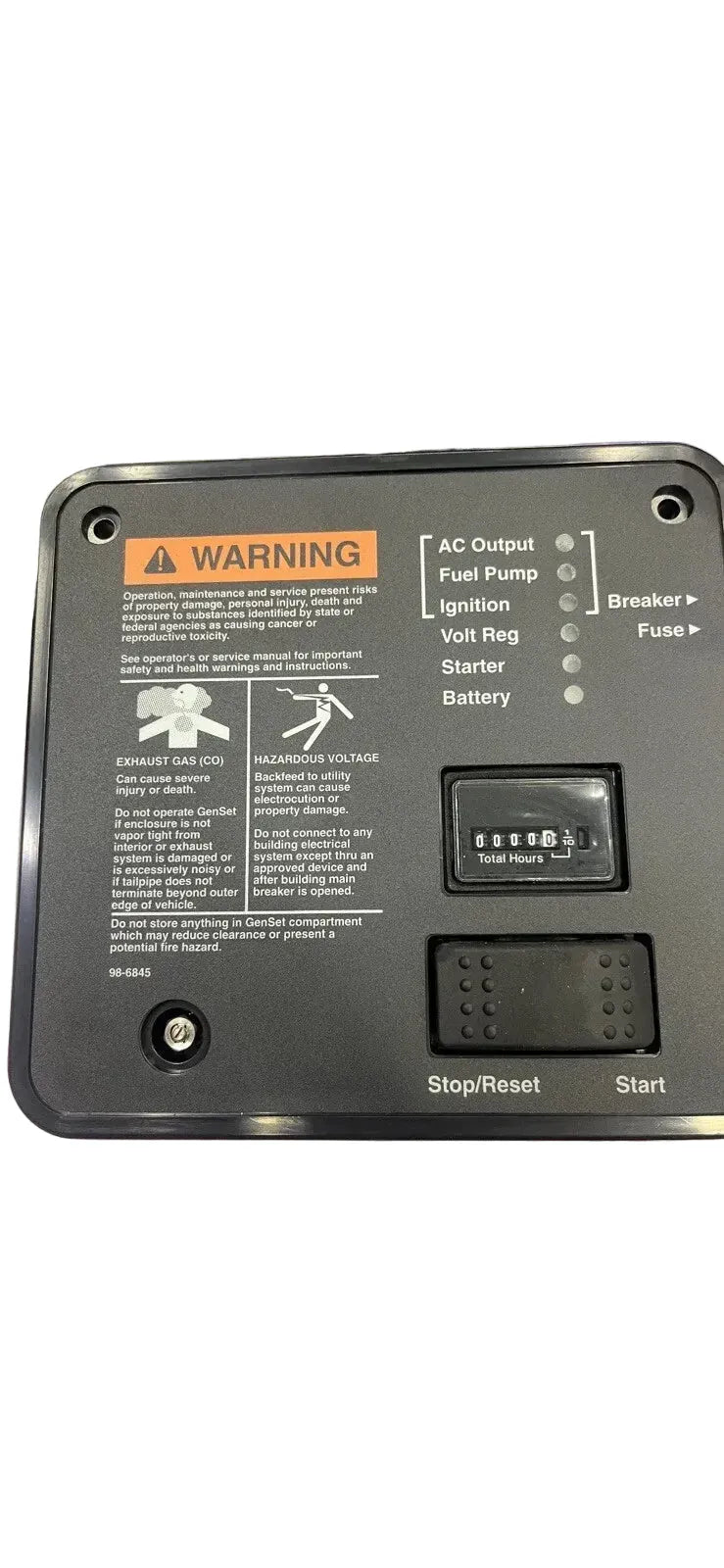

0300-4505-02 | Genuine Cummins® Control Box Assembly

Control equipment: Turns motors, pumps, valves, lights, heaters, etc. on and off.

Protect electrical components: Houses fuses, breakers, relays, and other components to help prevent electrical damage.

Organize wiring: Keeps electrical connections together in one accessible location.

Process signals: Receives information from sensors and sends commands to other components.

Provide operator controls: May contain switches, buttons, displays, or emergency-stop controls.

Improve safety: Helps isolate electrical circuits and can include protective devices.

Simplify maintenance: Technicians can access the controls and connections in one

Equipment won't turn on — no response when the switch or control is activated.

Equipment starts and stops unexpectedly — intermittent operation can indicate a failing relay, connection, or control board.

Controls don't work properly — buttons, switches, or displays may not respond.

Circuit breaker keeps tripping — could indicate a short circuit or failed component inside the box.

Burning smell or visible discoloration — overheated wiring, relays, or circuit-board components may be damaged.

Buzzing, clicking, or unusual electrical noises — a relay or contactor may be failing.

Error codes or warning lights — the control system may detect a fault.

Motors, pumps, or other components aren't receiving power even though the system is supposed to activate them.

Loose, corroded, or burned wiring/connectors inside the box.

Water or moisture inside the enclosure, which can cause corrosion and electrical faults.
