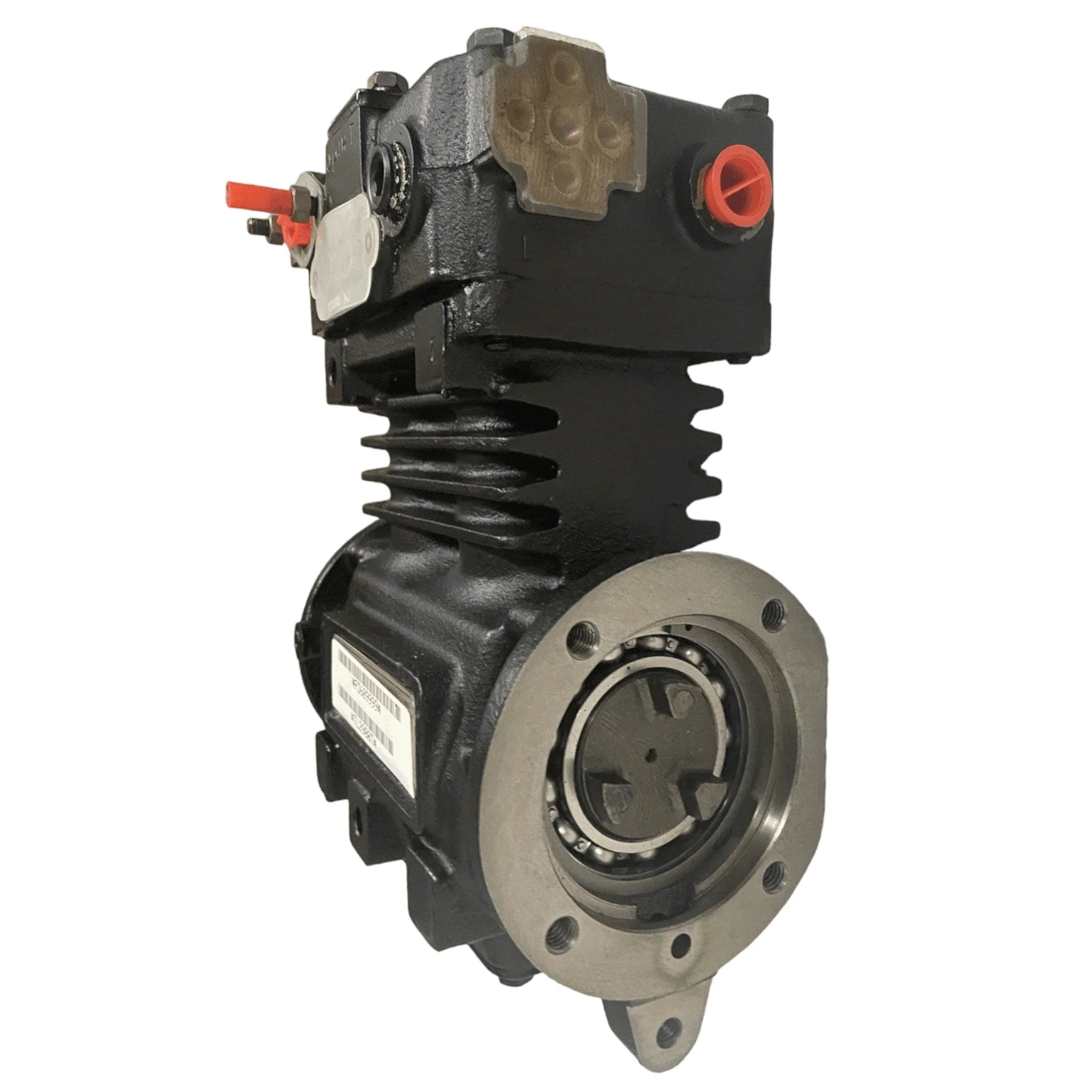

Description: Air Brake Compressor TF-550 For Cummins ISM, N14, M11
Brand: Bendix®
Condition: New
Part Number:
211879
Specificarions:
| Engine Application |
Cummins |
| Model |
TU-FLO 550 |
| Mount Style |
Flange Mount |
| Port Location Inlet-outlet |
Left/Left & Top |
| Cooling |
Water |
| System |
TU-FLO 550 |
| Flange Type |
C |
| Engine |
Drive |
| Weight |
55 |
Fitment Guide: Engines: K19, ISM, M11, N14, Cummins C Series Engine
An Air Compressor TF-550 is typically used on heavy-duty trucks, buses, and some industrial diesel engines. Its job is to generate compressed air for the vehicle's air brake system and other pneumatic accessories.
|
1. Air Brake Operation
- Provides the compressed air required to apply and release the brakes.
- Maintains safe operating pressure in the brake system.
- Essential for vehicle safety and legal operation.
2. Air Suspension Systems
- Supplies air to air-ride suspension components.
- Helps maintain ride height and improves ride comfort.
- Supports load leveling on commercial vehicles.
3. Pneumatic Accessories
The compressor can provide air for:
- Air horns
- Air-operated doors
- Pneumatic seats
- Clutch and transmission controls on some vehicles
- Other air-powered equipment
4. Maintaining System Pressure
- Continuously replenishes air lost during normal operation.
- Works with an air governor and air dryer.
- Automatically loads and unloads as system pressure changes.
Benefits of Using a TF-550
- Reliable air supply for critical systems.
- Durable design suitable for heavy-duty service.
- Helps reduce vehicle downtime.
- Supports safe braking performance.
- Commonly available replacement parts and service support.
|
Signs of Faulty:
|
1. Slow Air Pressure Build-Up
What you'll notice:
- Air gauges take much longer than normal to reach operating pressure.
- The low-air warning stays on for an extended time after startup.
Possible cause:
- Worn piston rings
- Leaking valves
- Internal compressor wear
2. Low Air Pressure
What you'll notice:
- Air pressure never reaches the normal operating range.
- Frequent low-air pressure alarms.
Possible cause:
- Compressor cannot produce enough airflow.
- Internal leakage or damaged components.
3. Excessive Oil in the Air System
What you'll notice:
- Oil found in air tanks.
- Oil contamination in the air dryer.
- Oily discharge when draining air tanks.
Possible cause:
- Worn piston rings or seals allowing engine oil to pass into the compressed-air system.
4. Compressor Runs Continuously
What you'll notice:
- Compressor rarely unloads.
- Engine may seem to work harder than usual.
Possible cause:
- Compressor is struggling to maintain pressure.
- Internal wear reducing efficiency.
5. Unusual Noises
What you'll notice:
- Knocking
- Grinding
- Squealing
- Rattling sounds from the compressor area
Possible cause:
- Worn bearings
- Damaged pistons
- Internal mechanical failure
6. Air Dryer Purges Excessively
What you'll notice:
- Frequent air dryer cycling.
- Irregular pressure fluctuations.
Possible cause:
- Compressor output problems or air system issues.
7. Overheating
What you'll notice:
- Compressor becomes excessively hot.
- Burnt smell near the compressor.
Possible cause:
- Restricted cooling passages
- Poor lubrication
- Excessive duty cycle
8. Air Leaks from Compressor Area
What you'll notice:
- Hissing sounds around the compressor.
- Visible leaks at fittings or gaskets.
Possible cause:
- Failed gaskets
- Loose fittings
- Cracked components
9. Excessive Moisture in Air Tanks
What you'll notice:
- More water than usual when draining tanks.
- Reduced air dryer effectiveness.
Possible cause:
- Compressor overheating or reduced efficiency.
|
