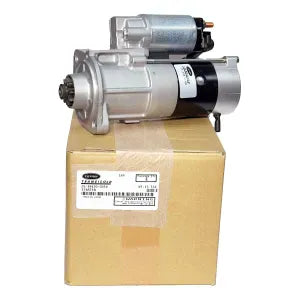

| Description | Starter Motor 12V For Carrier Transicold PC6022, PC6023, PC6024, PC6028, PC6111 |
|---|
| Condition | New |
|---|
| Brand | Carrier Transicold® |
|---|
| Part Number | 25-39880-00SV |
|---|
Specifications
|
Voltage: 12V
Teeth: 9T (9-tooth pinion)
Power Output: Typically around 2.5 kW
Rotation: Clockwise (CW)
|
Fitment Guide
| Brand |
Compatible model |
Equipment |
| Carrier Transicold |
ComfortPro PC6022 |
Truck APU |
| Carrier Transicold |
ComfortPro PC6023 |
Truck APU |
| Carrier Transicold |
ComfortPro PC6024 |
Truck APU |
| Carrier Transicold |
ComfortPro PC6028 |
Truck APU |
| Carrier Transicold |
ComfortPro PC6111 |
Truck APU |
| Carrier Transicold |
Aspen APU |
Auxiliary power unit |
A starter motor is an electric motor that starts a vehicle's engine. When you turn the ignition key or press the start button, the starter motor uses electrical power from the battery to turn the engine until it starts running on its own.
-
Starting the engine: Rotates the engine's crankshaft to initiate combustion.
-
Using battery power: Draws electrical energy from the battery to operate.
-
Engaging the flywheel: Uses a small gear (called a pinion gear) to turn the engine.
-
Starting the vehicle: Allows the engine to begin running without manually turning it.
|
Signs of Faulty
-
Clicking noise: You hear a click when turning the key, but the engine doesn't start.
-
Engine won't crank: The engine does not turn over when you try to start the vehicle.
-
Intermittent starting: Sometimes the engine starts normally, and other times it doesn't.
-
Grinding noise: A grinding sound occurs when the starter gear fails to engage properly with the flywheel.
-
Whirring noise: The starter motor spins, but it doesn't turn the engine.
-
Smoke or burning smell: The starter may be overheating due to an electrical fault or excessive current draw.
-
Slow cranking: The engine turns over more slowly than usual. However, this can also indicate a weak battery or poor electrical connections.
|
Carrier Transicold is a leading supplier of refrigeration systems for commercial vehicles and containers. As part of the Carrier Corporation, the company offers a wide range of solutions to ensure optimal cargo storage conditions. It is known for its innovative technologies that increase the efficiency and reliability of product transportation. Carrier Transicold is also actively implementing environmentally friendly technologies aimed at reducing the impact on the environment.
