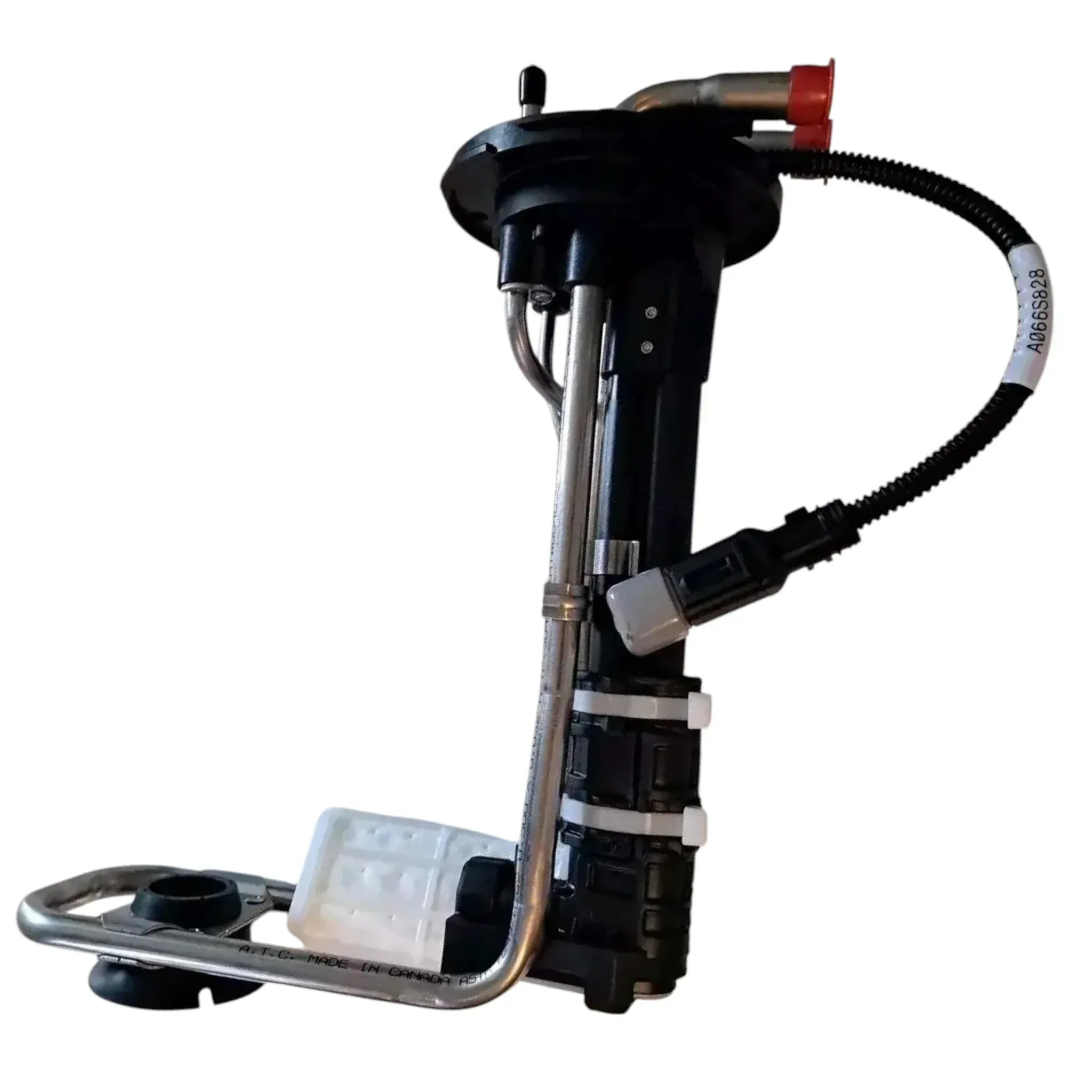

2515990C1 | Genuine International® DEF Sensor Head Assembly

The sensor tells the engine computer how much DEF is in the tank.
This allows:

• Low DEF warnings

• Accurate gauge readings

• Preventing the engine from going into low-power or derate mode

2. Monitors DEF Temperature

The DEF head tracks fluid temperature so the system can:

• Activate the DEF tank heater when DEF is frozen

• Prevent overheating

• Ensure DEF is at the correct temperature for injection

3. Detects DEF Quality (Urea Concentration)

Many modern DEF heads include a quality sensor that confirms the DEF has the correct 32.5% urea concentration.
This prevents:

• Engine derates

• Emission system errors

• Damage caused by contaminated or diluted DEF

4. Provides a Suction Point for DEF Pump

Some DEF heads include:

• A pickup tube

• A filter
  These allow the dosing pump to pull DEF from the tank cleanly and reliably.

5. Communicates With the ECM / Emission System

The DEF head sends data to the ECM so it can:

• Correctly control DEF injection

• Maintain proper NOx reduction

• Stay compliant with emissions laws

6. Enables Cold-Weather Operation

DEF freezes at 12°F (-11°C), so most DEF heads include heaters or temperature controls to:

• Thaw frozen DEF

• Allow the system to function in winter

• Protect the pump and lines from damage

• Dash displays “Poor DEF Quality”, “Check DEF System”, or “SCR Fault”

• Even when you are using fresh, high-quality DEF
  This happens when the quality sensor inside the head fails.

2. Incorrect DEF Level Reading

• DEF gauge stuck on empty, full, or bouncing

• Sudden drop to empty even with DEF in the tank
  This means the level sensor is malfunctioning.

3. Engine Derate / Loss of Power

A bad DEF head can trigger:

• 25% – 40% power derate

• Speed limit (5 mph limp mode on some models)
  The engine does this to protect emissions compliance.

4. DEF Temperature Sensor Fault

• Code for DEF temperature high or low

• DEF heater not turning on or staying on too long
  Bad temperature data causes ECM confusion.

5. SCR / NOx System Warning Lights

Common dash messages:

• “Service Emissions System”

• “SCR Fault”

• “Aftertreatment System Problem”

The DEF head feeds critical data to these systems.

6. No DEF Suction or DEF Pump Not Working

If the pickup tube, filter, or internal electronics fail:

• DEF pump may run dry

• System won’t prime

• No DEF injection occurs

7. Trouble Codes Stored in ECM

You may see codes related to:

• DEF quality

• DEF temperature

• DEF level

• DEF tank heater circuit

• DEF pressure or delivery

These commonly point directly to the DEF head.

8. Crystallization Around DEF Tank or Connectors

• White crystals forming around the DEF head

• Indicates leaks or internal cracking
  Crystallized DEF often damages wiring or sensors.

9. DEF Freezes or Doesn’t Thaw Properly

If the heater inside the head fails:

• DEF remains frozen

• No dosing occurs

• Cold-weather SCR faults appear
