3001270 | Genuine Cummins® Fan Hub Assembly

1. Compatible Engine Models

This specific fan hub assembly is primarily designed for large-displacement, heavy-duty Cummins diesel engines, most notably:

• Cummins N14 (Select Series/CELECT Plus)

• Cummins 855 Series (NH/NT/NTA Big Cam engines)

2. Common Vehicle & Equipment Types

Because these engines are legendary workhorses, this fan hub is found across several industries:

• Heavy-Duty Commercial Trucks (Class 8): Semi-trucks manufactured by Peterbilt, Kenworth, Freightliner, and International from the late 1980s through the early 2000s.

• Agricultural Equipment: Large articulated tractors (e.g., older Steiger or Versatile models).

• Industrial & Construction Machinery: Earthmovers, generators, and heavy cranes.

1. What Does It Do?

The fan hub assembly serves as the central mounting point for the radiator cooling fan blade and its drive pulley. It contains precision heavy-duty bearings that allow the fan to spin smoothly at high speeds.

Its primary roles are:

• Structural Support: Bearing the heavy physical weight and rotational stress of the massive cooling fan.

• Rotational Stability: Preventing vibrations or "wobble" that could destroy the water pump, belts, or the radiator itself.

• Power Transfer: Allowing the engine's accessory drive belts to transfer rotational force from the crankshaft to the fan.

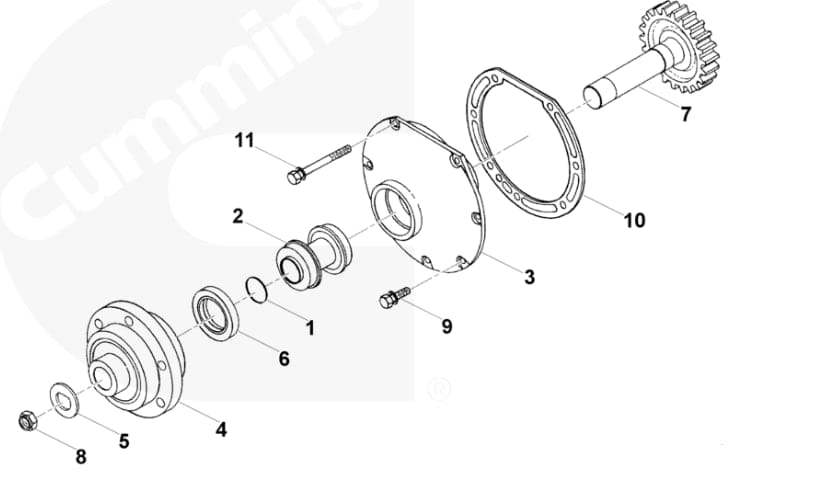

2. Structural Components

A complete assembly typically consists of:

• The heavy-duty cast iron or steel mounting bracket/housing.

• A high-capacity, sealed internal bearing setup.

• The rotating spindle/hub spindle where the pulley and fan clutch bolt on.

3. Why "Genuine" Matters

Unlike aftermarket alternatives, a Genuine Cummins part ensures that the casting alloys can withstand extreme thermal cycling and intense belt tension without cracking, preventing catastrophic engine room failures.

1. Excessive Play or "Wobble"

With the engine completely off, if you grab the fan blade and can rock it back and forth, the internal bearings are worn out. The fan should feel solid with zero axial or radial play.

2. Loud Bearing Noise (Grinding or Whining)

A failing fan hub will produce a distinct roaring, grinding, or high-pitched whining noise from the front of the engine. This noise typically gets louder as engine RPM increases.

3. Visible Oil or Grease Leakage

The precision bearings inside the 3201750 assembly are sealed with specialized grease. If you see black grease slinging out from behind the fan pulley onto the engine block or fan blades, the seals have failed, and bearing failure is imminent.

4. Abnormal Belt Wear or Shredding

When the fan hub bearings degrade, the pulley loses its perfect alignment with the rest of the accessory drive. This misalignment causes the drive belts to wear unevenly, squeal, flip over, or completely shred.

5. Engine Overheating

If the bearings seize or create excessive drag, the fan cannot spin at its required speed, leading to reduced airflow through the radiator and rising engine temperatures under heavy loads
