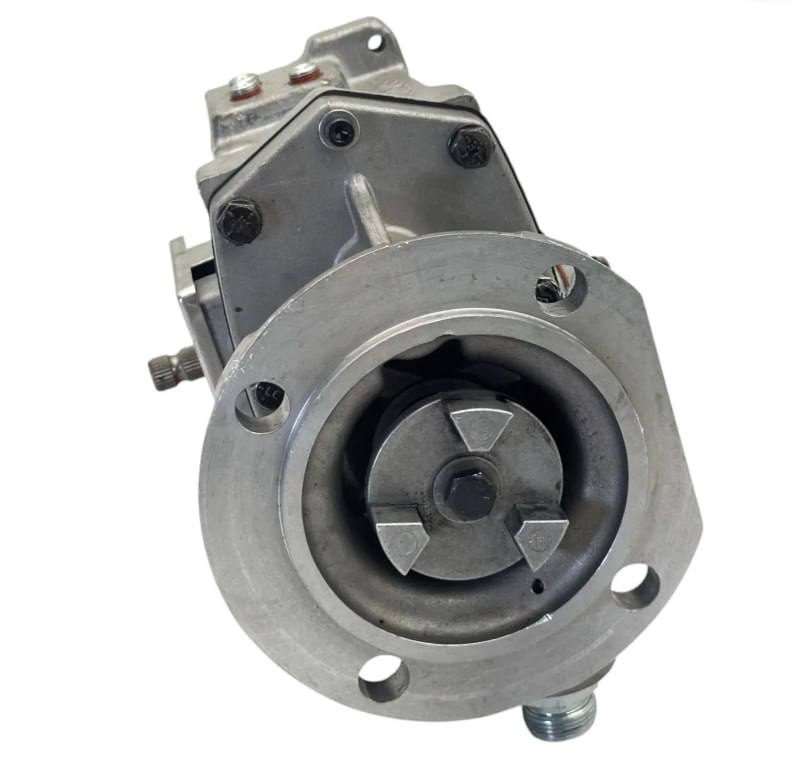

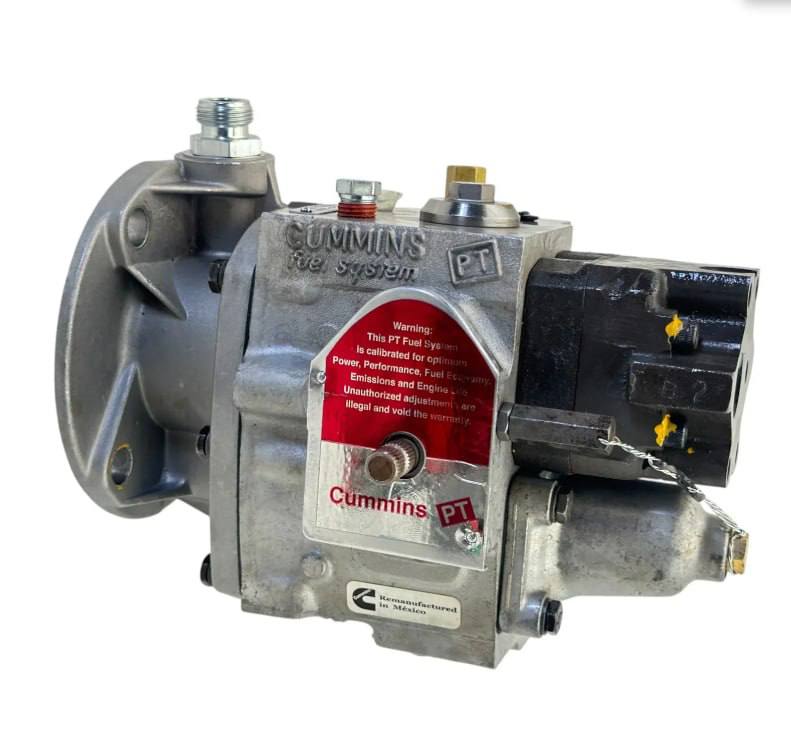

3060754 | Genuine Cummins® Fuel Pump for KTA, NTA855 / N14

1. Compatible Engine Models

This fuel pump is specifically engineered for legacy, high-displacement heavy commercial diesel engines. It is a direct factory fit for:

• Cummins KTA Series (KTA19, KT19, KTTA19): These are massive 19-liter, 6-cylinder inline engines widely recognized for extreme durability in heavy-duty applications.

• Cummins NTA855 / N14 Series: Selective older mechanical variants of the legendary 14-liter engine platform utilize this physical pump profile for high-output configurations.

2. Common Vehicle and Machinery Applications

Because it is designed for ultra-heavy-duty or industrial-grade power platforms, this fuel pump fits a wide variety of specialized commercial transport vehicles and industrial machinery:

• Heavy Duty Mining Dump Trucks: Large haul trucks (such as older Komatsu, Terex, or BelAZ models powered by Cummins KTA19 engines).

• Heavy Construction Vehicles: Large tracked bulldozers, heavy excavators, and scrapers.

• Commercial Marine Vessels: Tugboats, commercial fishing vessels, and inland water transport ships utilizing marine-certified Cummins engines.

• Specialized Heavy Transport: Elite heavy-haul multi-axle transport setups and heavy oilfield service trucks.

1. What is it?

Unlike electrical pumps found in modern light vehicles, this is a rugged, heavy-duty mechanical component engineered to bolt directly to the engine's accessory drive or gear housing. It is built to operate continuously in extreme environments—such as marine, mining, and heavy construction sites—ensuring a steady supply of diesel fuel to the high-pressure injection system.

2. Core Functions

• Low-Pressure Fuel Transfer: Its primary job is to draw fuel out of the vehicle’s low-slung fuel tanks, pull it through the primary water separators and fuel filters, and push it directly into the fuel injection pump or PT (Pressure-Time) system.

• Constant High-Volume Delivery: Large engines like the Cummins KTA19 consume massive amounts of fuel under load. This pump utilizes heavy-duty internal gears to deliver a consistent, high-volume flow rate that scales perfectly with engine RPM.

• Internal Pressure Regulation: The assembly contains internal pressure relief valves. This ensures that even if the engine is running at high RPM or if the fuel lines face restrictions, the fuel pressure remains within safe, calibrated operating parameters, preventing damage to downstream injectors.

1. Severe Engine Power Loss and Bogging Under Load

The most common sign of a faulty mechanical lift pump is a lack of power when the vehicle or machine climbs a hill or lifts a heavy load. If the pump's internal gears wear down or the pressure relief valve weakens, it cannot deliver the massive volume of fuel required at high RPM. The engine will feel sluggish, "bog down," or fail to reach its peak horsepower.

2. Hard Starting or Complete Refusal to Start

A healthy mechanical pump holds prime and quickly pulls fuel from the chassis tanks during cranking. If the internal check valves are damaged or internal seals are leaking, fuel will drain back into the tanks when the engine is turned off. This results in extended cranking times (hard starting) or an engine that refuses to fire up at all due to air pockets in the fuel system.

3. Engine Misfiring, Rough Idling, or Stalling

When a fuel pump delivers erratic or low pressure, the fuel injection system cannot meter fuel precisely to the cylinders. This causes the engine to idle violently, shake, or misfire. In severe cases, when you drop the throttle back to an idle, the fuel pressure may plunge too low, causing the engine to stall completely.

4. Fuel Leaking from the Pump Housing or Shaft Seal

Over thousands of operating hours, the mechanical shaft seals that isolate the fuel from the engine's gear train can wear out. You may notice diesel fuel dripping externally from the pump housing onto the ground, or worse, leaking internally into the engine's accessory drive, which can dangerously dilute the engine oil with diesel fuel.
