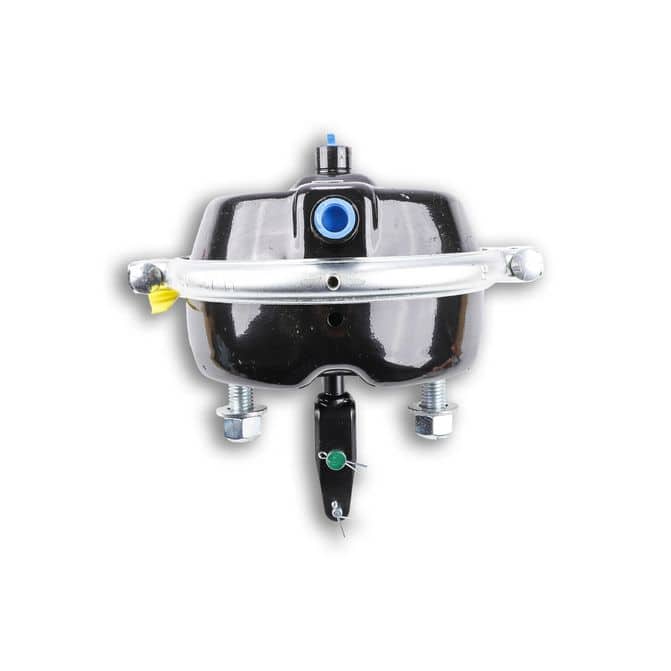

3566653C91 | Genuine International® Long Stroke Air Brake Service Chamber with Welded Clevis

Description: Long Stroke Air Brake Service Chamber with Welded Clevis
Condition: New
Brand: International®
Part Number: 3566653C91

• Weight: 15 lbs
• Fit for: Navistar, International

• Specifications:
  • Stroke type: Long

  • Clevis type: Welded

  • Clevis included: Yes

  • Service size type: 30

  • Dimensions: 12.35 x 9.05 x 9.7 in
• Functions:
  • Welded clevis for connection: The welded clevis provides a secure and permanent attachment point for the slack adjuster, ensuring proper brake adjustment and operation.

  • Long stroke for increased braking force: The extended travel distance of the long-stroke chamber allows for a greater force exerted on the brakes compared to a standard chamber.

  • Converts air pressure to mechanical force: When compressed air from the air reservoir enters the chamber, it pushes on a diaphragm inside, which in turn pushes on a pushrod. This pushrod translates the air pressure into a mechanical force that applies the brakes.

Navistar International Corporation, an American company, manufactures a wide range of vehicles, including trucks, buses, and defense vehicles, along with engines. It's the first to be EPA-certified for meeting 2007 standards. They also provide high-quality replacement parts and accessories, ensuring top performance. Navistar is actively developing electric and hybrid solutions for transportation, serving logistics, construction, and public transport sectors.
