| Description | International® Module ECU |
|---|
| Condition | New |
|---|
| Brand | International |
|---|
| Part Number | 3820471C1 |
|---|
Vehicle Fitment
-
International® DuraStar® Series: 4300, 4400 medium-duty commercial trucks.
-
International® WorkStar® Series: 7300, 7400, 7500, 7600 severe-service and vocational trucks.
-
International® TranStar® & ProStar® Series: 8500, 8600 regional haul and heavy-duty highway tractors.
-
International® LoneStar® Series: Premium Class 8 heavy-duty trucks.
-
International® / IC Bus® Series: CE Series and FE Series commercial and school buses.
|

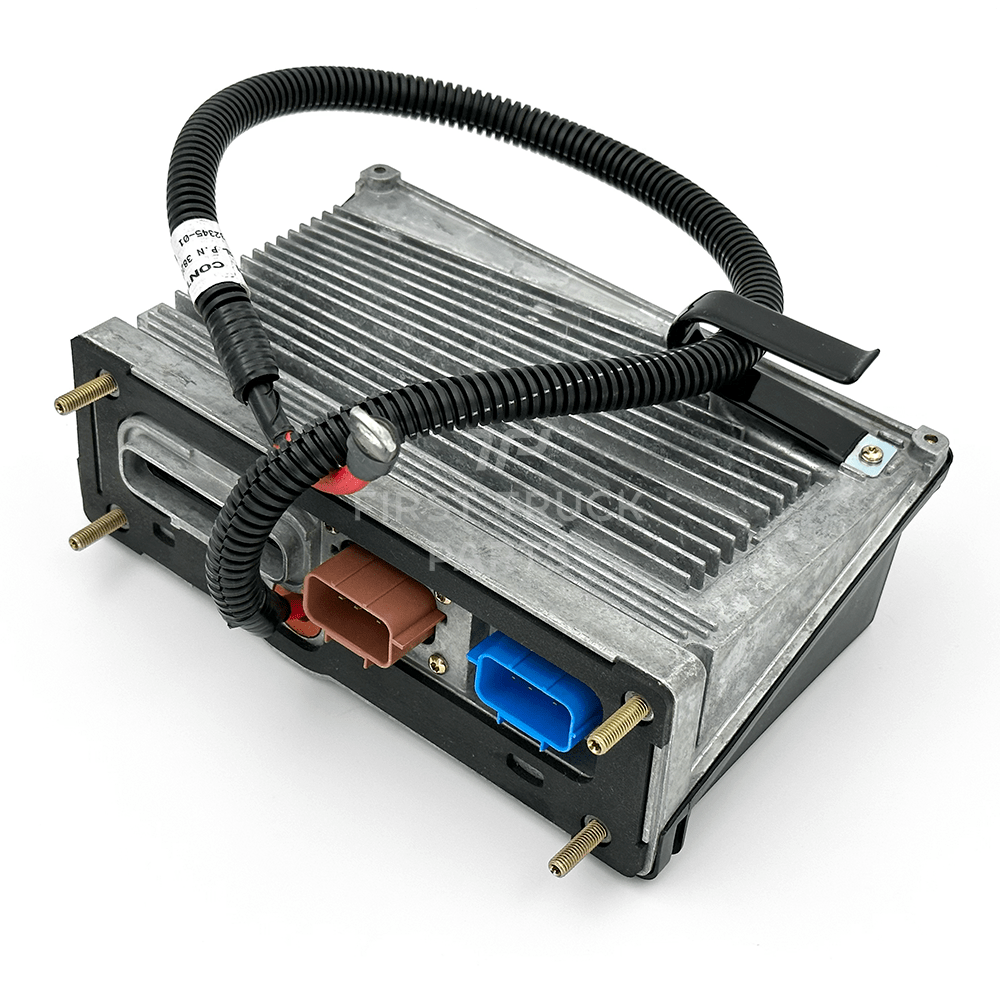

The Electronic ESC2 Boot Loader Module is an OEM Electronic System Controller (ESC) and body control node engineered for Navistar® / International® trucks utilizing the Diamond Logic® multiplexed electrical system.
|
1. What is it?
Part is a centralized chassis electronic control unit (Body Control Module / BCM) that coordinates and automates cab, chassis, and auxiliary electrical features. The "Boot Loader" designation indicates it houses low-level firmware architecture that allows factory-level flashing, diagnostic communication, and custom programming across the vehicle's controller area network (CAN bus).
2. Core Functions & Technical Features
-
Multiplex Power Distribution: Manages solid-state switching for headlights, turn signals, wipers, power windows, trailer lights, and auxiliary equipment, replacing traditional relays and fuses.
-
Diamond Logic® Automation: Controls programmable vehicle safety features, interlocks (e.g., PTO engage cut-offs, park brake safety interlocks), and body builder signals.
-
Diagnostic Gateway & Network Communications: Acts as a primary communication node bridging the J1939 high-speed CAN bus and J1708 diagnostic datalinks to transmit diagnostic trouble codes (DTCs) to the instrument cluster and external scan tools.
-
Boot Loader Firmware: Contains system memory designed to accept software updates, parameter changes, and feature calibrations using Navistar® ServiceMaxx® or Diamond Logic® Builder software.
|
Signs of Faulty
|
1. Total Loss of Exterior Lighting, Wipers, or Horn
-
Symptom: Headlights, turn signals, brake lights, windshield wipers, or horn stop functioning completely, despite good fuses and switches.
-
Cause: Failure of internal solid-state power drivers inside the ESC2 module that distribute power to body electrical systems.
2. Intermittent Electrical "Glitches" or Phantom Accessory Activation
-
Symptom: Marker lights flicker, turn signals cycle on their own, power windows stall, or dash gauges sweep erratically while driving.
-
Cause: Internal short circuits caused by moisture intrusion or water damage on the internal circuit board traces.
3. No Start Condition / Communication Faults on J1939 CAN Bus
-
Symptom: The engine cranks but will not start, or the instrument cluster displays "NO DATA", "COMM FAULT", or loses communication with the engine ECM.
-
Cause: Failure of the module's integrated CAN bus transceiver or internal memory corruption preventing the module from booting up.
4. "Boot Loader" Mode Stuck / Programming Failures
-
Symptom: The truck's body systems refuse to operate, and diagnostic software (Navistar® ServiceMaxx / Diamond Logic® Builder) detects the module trapped in "Boot Loader Mode" or fails during firmware updates.
-
Cause: Corrupted EEPROM firmware or hardware memory degradation preventing the module from initializing operational logic.
|
