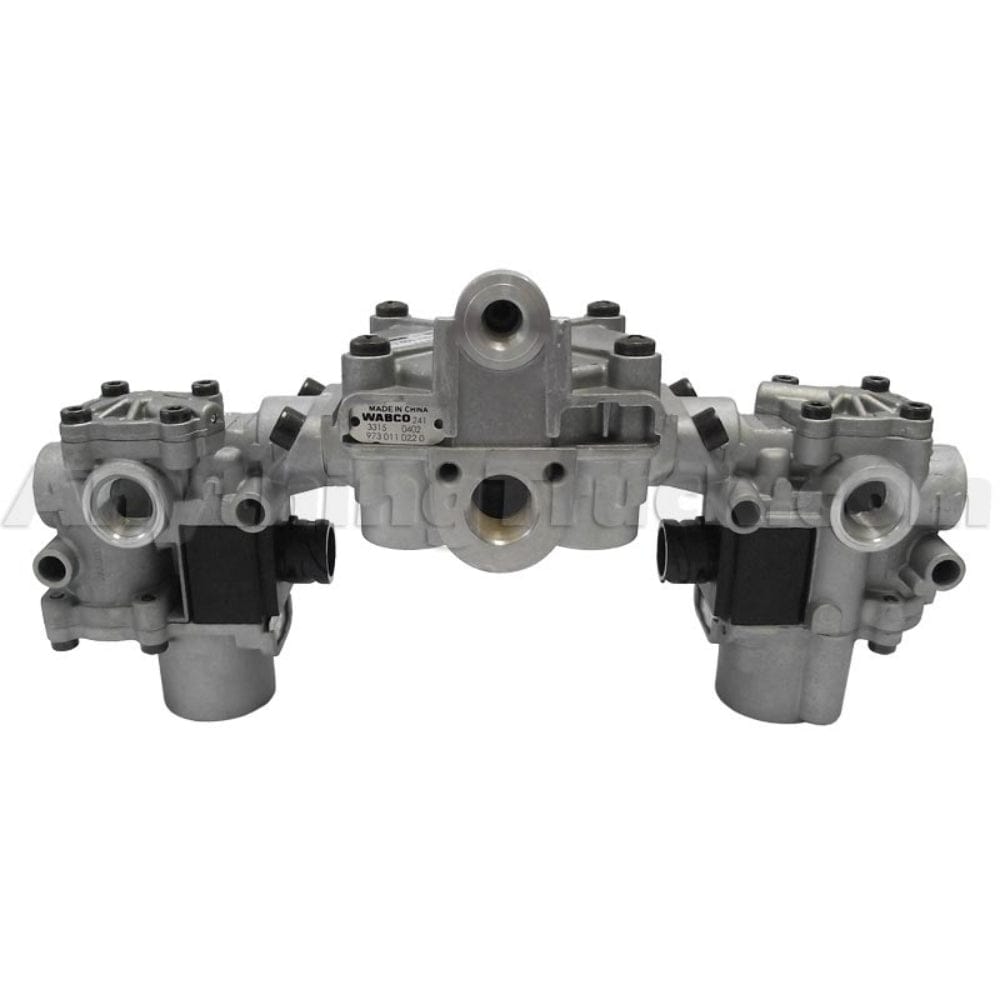

4725001230 | Genuine Wabco® ABS Relay Valve/Modulator

Type: ABS
Weight: 9 lbs

Specifications:

• Calculated Volume (dm³)
  6.16
• Electrical connection
  DIN 72585-A1-3.1-Sn/K1
• Max. operating pressure
  11.0 bar
• Port thread 1
  1/2 - 14 Dry Seal NPTF
• Port thread 2
  3/8 - 18 Dry Seal NPTF
• Port thread 2.1
  1/2 - 14 Dry Seal NPTF
• Port thread 2.2
  1/2 - 14 Dry Seal NPTF
• Port thread 3
  Exhaust
• Port thread 4
  1/4" - 18 Dry Seal NPTF
• Product category
  Device
• Protection class
  IP66, IP69K
• Response pressure
  0.38 bar
• System
  4S/4M, 6S/4M
• Technical specification
  OE specification
• Temperature range
  -40°C to +80°C
• Voltage
  12 V

Manufacturer information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.

Warranty
First Truck Parts offers a 365-days warranty for all types of parts and in any condition. The warranty applies only to buyers who have placed an order on our website.
