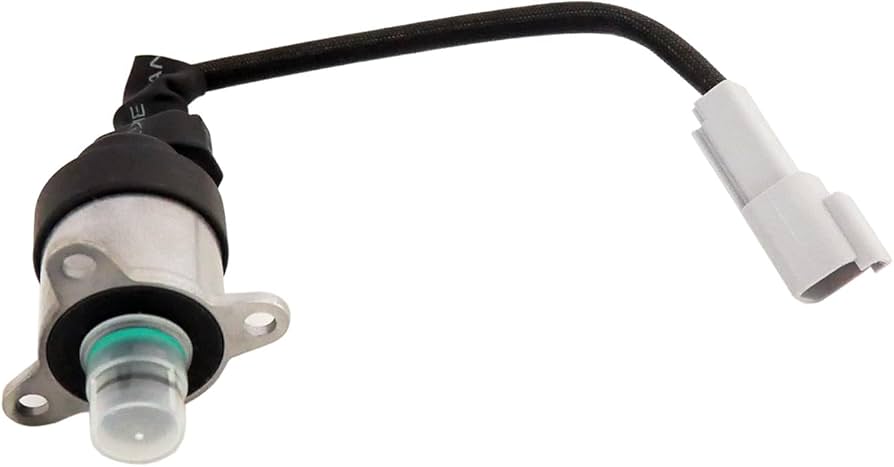

4902916 | Genuine Cummins® Actuator, Etr Fuel Control

1. Compatible Engine Families

This actuator is used across a broad spectrum of Cummins medium-duty and heavy-duty commercial diesel engines equipped with High-Pressure Common Rail (HPCR) fuel systems:

• Cummins ISB / ISBe (3.9L / 4.5L / 5.9L / 6.7L inline engines)

• Cummins ISC / QSC 8.3 (8.3L inline-6 commercial/industrial platforms)

• Cummins ISL / QSL9 / L9 (8.9L heavy-duty and agricultural workhorse platforms)

2. Industry Applications & Vehicle Types

Because Cummins engines power various industrial and commercial operations, this part fits a wide selection of heavy machinery:

• Commercial Trucks & Buses: Medium-duty delivery fleets, vocational dump trucks, school buses, and European commercial models like MAN Trucks (TGA, TGL, TGM, TGS, TGX series).

• Agricultural Equipment: Large tractors and harvesters, notably Case IH Magnum series (e.g., 310, 335), New Holland T8000 series (T8010, T8030, T8040, T8050), and Buhler Versatile tractors (320/370).

• Construction & Mining Machinery: Heavy excavators and wheel loaders, such as Hyundai HL770 / R360 series.

1. What is it?

This part is an electronically controlled electromagnetic solenoid valve (commonly referred to as a Fuel Control Actuator (FCA), Suction Control Valve, or Fuel Metering Unit). It is mounted directly onto the high-pressure injection pump within High-Pressure Common Rail (HPCR) diesel fuel systems.

2. Core Functions

• Fuel Volume Metering: Instead of letting the fuel pump unnecessarily compress maximum fuel volume at all times, the actuator allows only the exact amount of fuel required for current engine loads to enter the pumping chambers.

• Rail Pressure Stabilization: It acts as the primary tool for the Engine Control Module (ECM) to maintain stable, targeted fuel rail pressure. The ECM sends pulse-width modulated (PWM) signals to the actuator to precisely open or close its internal valve.

• Efficiency & Temperature Management: By restricting fuel flow before compression, it lowers mechanical drag on the engine, reduces parasitic power loss, and prevents fuel from overheating, which significantly improves overall fuel economy and limits wear on the injection pump.

1. Engine Hunting or Erratic Idle

The most classic symptom of a sticking actuator is an unstable engine idle. The RPM will surge up and down (known as "hunting") because the actuator cannot smoothly meter the fuel volume, forcing the ECM to constantly over-correct.

2. Hard Starting or No-Start Condition

If the internal valve gets stuck closed or fails to react quickly during cranking, the fuel pump cannot build the minimum required rail pressure to fire the injectors. You will experience extended cranking times or a truck that refuses to start at all.

3. Drastic Loss of Power or "Limp Mode"

Under heavy acceleration or load, the engine demands a rapid increase in fuel rail pressure. If the actuator reacts too slowly or fails to open fully, the engine will starve for fuel, hesitate, and likely drop into a protective "limp home" mode to prevent system damage.

4. Engine Rattling or Louder Diesel Knock

If the actuator sticks wide open, it floods the high-pressure pump, causing fuel rail pressure to spike far above targeted levels. This extreme pressure leads to advanced, violent fuel ignition, which presents itself as an abnormally loud, harsh diesel knocking sound.

5. Diagnostic Trouble Codes (DTCs)

A failing actuator will instantly trigger the Check Engine light. Common fault codes read via a diagnostic scanner include:

• P0087: Fuel Rail/System Pressure - Too Low

• P0088: Fuel Rail/System Pressure - Too High

• P0251: Injection Pump Fuel Metering Control "A" Malfunction
