| Description | Expansion Controllers |
|---|
| Condition | New |
|---|
| Brand | Parker® |
|---|
| Part Number | 645665 |
|---|
| POWER SUPPLY VOLTAGE |
9-32 VDC |
| MAXIMUM OPERATING TEMPERATURE |
70 °C |
| MINIMUM OPERATING TEMPERATURE |
-40 °C |
| NUMBER OF INPUTS |
5 |
| NUMBER OF OUTPUTS |
8 (dual) |
| INGRESS PROTECTION RATING |
69K |
| SPECIFICATIONS MET |
2004/108/EC |
| ELECTRICAL CONNECTION |
AMP/Tyco junior power timer |
| OUTPUT CURRENT RATING |
2000 mA |
| HOUSING MATERIAL |
Aluminum |
| INDUSTRY |
Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation |
| COMMUNICATION INTERFACE |
2xCAN, 1xUSB |
| SOFTWARE |
IQANdesign platform |
| CONTROLLER TYPE |
Master controller |

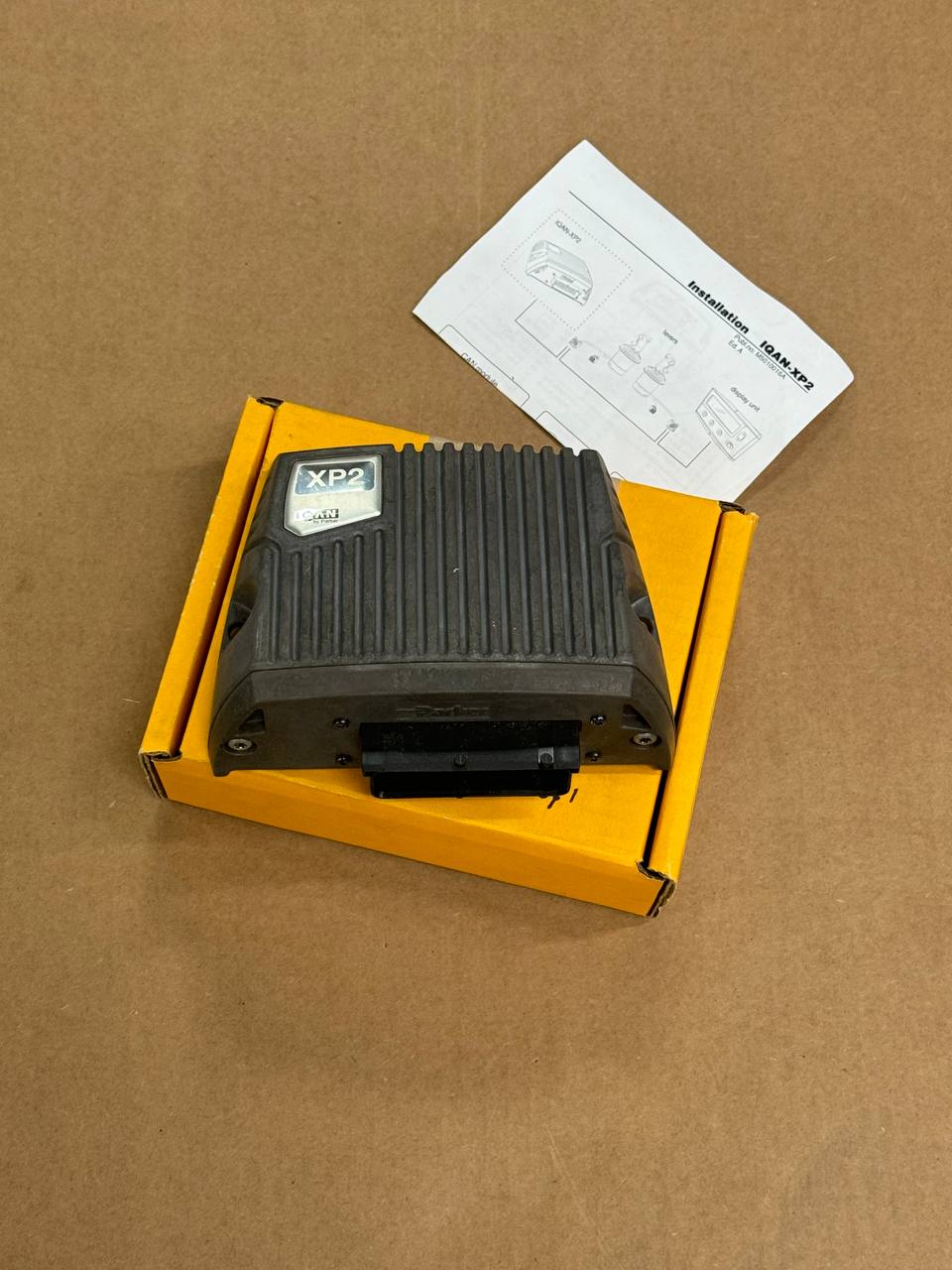

Parker’s IQAN-XP2 module is a legacy module in a collection of expansion (slave) controllers that can be added to an IQAN system. The rugged XP2 has 4 bidirectional, regulated current outputs for controlling proportional valves. It also has 4 digital outputs for on-off valves which can be configured as 4 single, or 2 bidirectional PWM (pulse width modulation) outputs for non-regulated control of proportional valves and devices. The IQAN-XP2 has inputs capable of measuring analog, digital and frequency signals. The I/O may be flexibly configured to meet any system need.
Its function is defined in the IQAN-MDM master unit’s program with the easy-to-use IQAN develop programming tools. The IQAN-XP2 communicates with the master over a CAN bus. Equipped with an aluminum housing and an environmentally sealed, 42-pin connector, this controller is designed for the outdoor environment.
With no programming required the IQAN-XP2 legacy expansion controller is perfect for field service replacement in existing equipment.
The IQAN-XP2 is in phase out status and is not recommended for new applications
