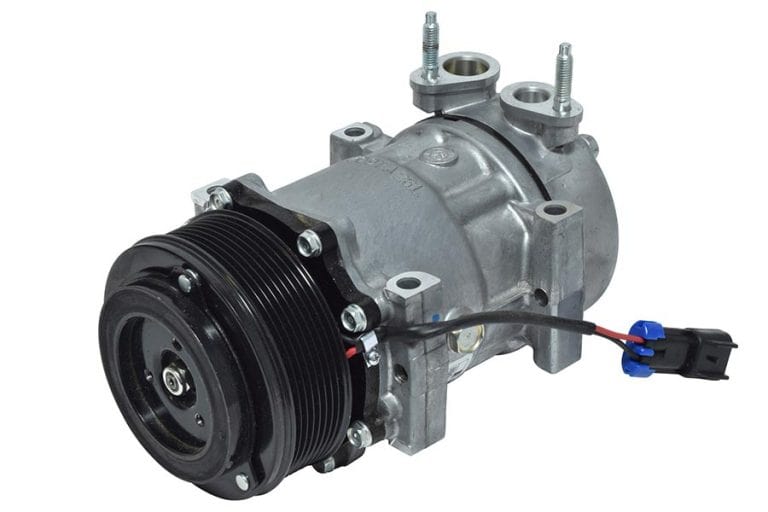

7513378 | International® A/C Compressor w/clutch (for: Navistar, International)

• Weight: 30 lbs
• Fit for: Navistar, International
• Specifications:
  • Volts: 12v

  • Rotation: CW

  • Clutch Diameter: 125mm

  • Dimensions - 12 × 9 × 9 in

  • Oil Type: PAG100

  • Factory Oil Charge: 300cc Oil

  • No. of Grooves: 8 groove

  • Fitting Style: Pad-Tear Drop type

  • Fitting Port Position: Side of head

  • Belt Type: Serpentine

  • Refrigerant Type: R134a

  • Wire Type: 2 Wire Metripak
• Functions:

  • Clutch engagement: The compressor is equipped with a clutch mechanism that allows it to engage and disengage as needed.

  • Refrigerant compression: The primary function of the A/C compressor is to compress low-pressure refrigerant gas into high-pressure gas. This compression increases the refrigerant's temperature, allowing it to release heat outside the vehicle.

  • Refrigerant circulation: The compressed refrigerant circulates through the A/C system, traveling through the condenser, expansion valve, evaporator, and back to the compressor, where the cycle repeats. This process removes heat from the interior of the vehicle, resulting in cooler air.
