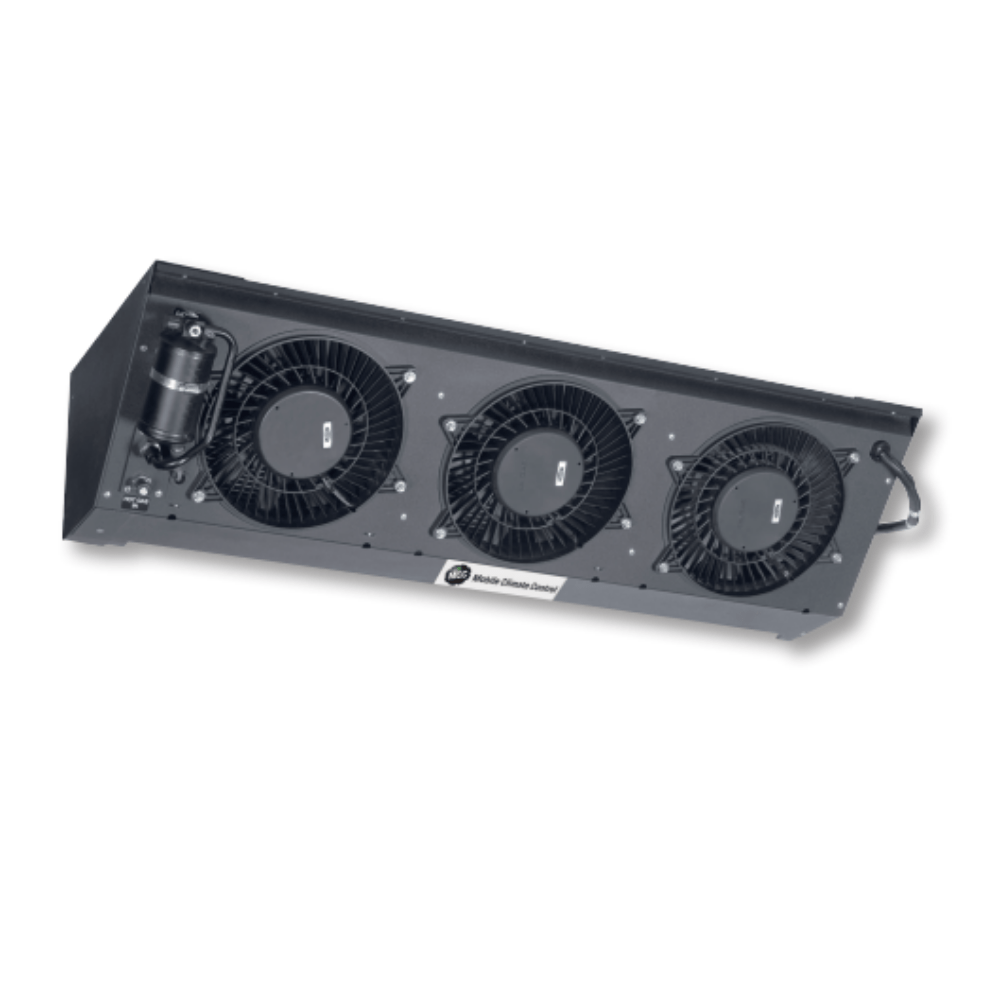

77-00274-11 | Genuine Carrier® CM-3 Condenser Assembly

Type: Condenser
Weight: 60 lbs

Specifications:
Capacity: 80000 Btu/hr (23.44 kW) IMACA
Air flow: 1350 CFM (2294 m3/hr)
Condenser coil: Advanced technology Micro Channel Heat Exchanger (MCHX)
Condenser fans: Unitized, low-profile, axial-flow vector fans balanced for quiet, vibration-free operation with finger guard
Fan motors: Totally enclosed, pancake-style, permanent-magnet type with extended-life, permanently lubricated bearings
Max amperage requirement: 21 amps @ 13.5 VDC; 11.5 amps @ 27.0 VDC
Safety controls: High refrigerant pressure cut-out 400 psi (28 bar); cut-in 300 psi (21 bar)
Receiver filter dryer: 16 in3 (262 cm3), ½” [#8] Male Insert O-Ring (MIOR)

Features:
- Micro channel all aluminum coil design for unmatched heat transfer
- Zink coated for added durability and corrosion protection
- Rugged coated steel construction
- Integrated high pressure safety switch as standard equipment
- Unitized motor/fan package increases service access and decreases service time
- Winter protection package
- Skirt mount or component mount air inlet grill
- 12V or 24V operation
- Stackable kit available
- Incorporated single piece receiver/dryer and system moisture indicator reduced possible leak joints
- Plug-n-Play connectors on unit and fan motor provide for ease of installation and motor service
