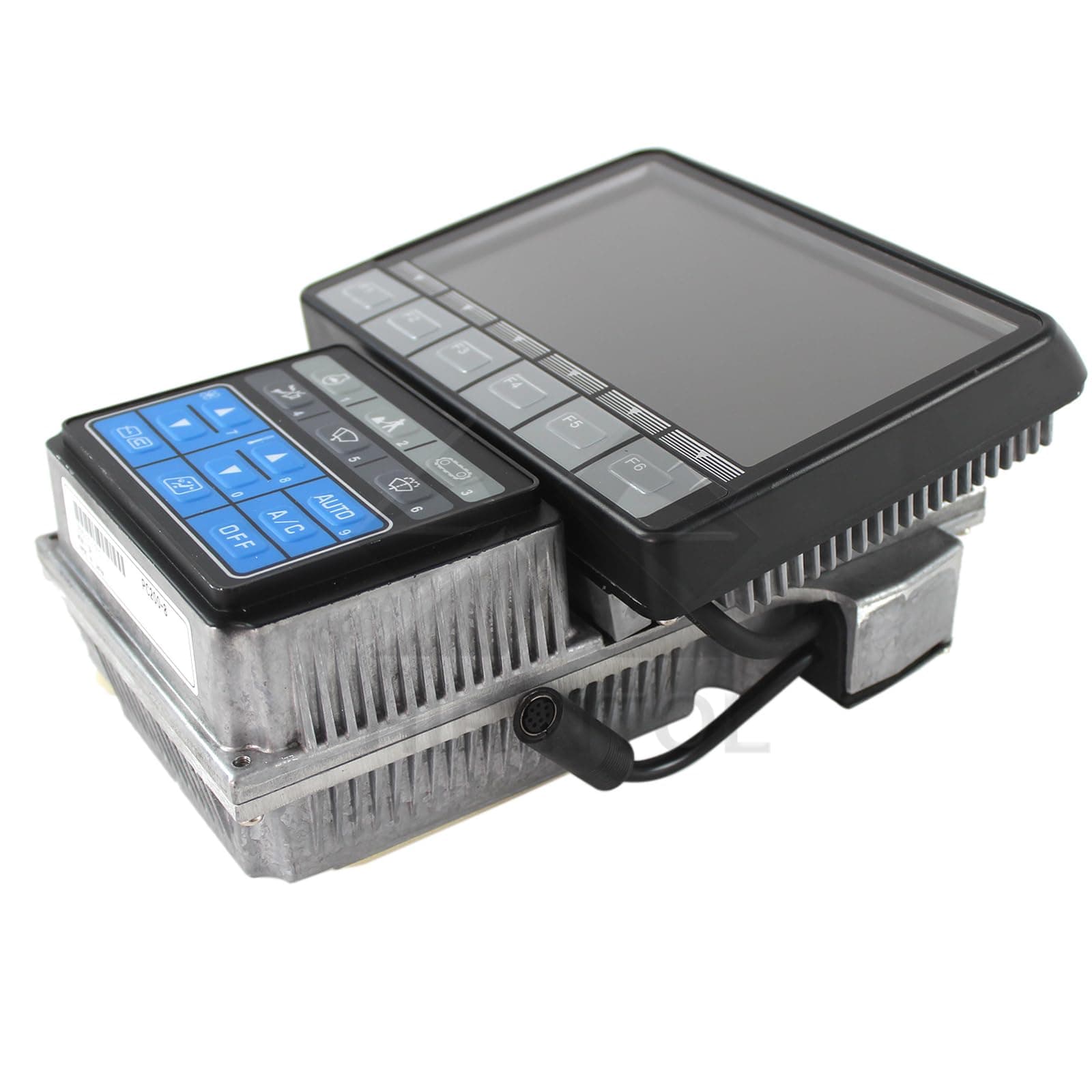

7835-34-1004 | Genuine Komatsu® Panel Monitor Cluster Gauge

1. Display machine status

   • Shows engine speed (RPM), hydraulic pressure, fuel level, temperature, and other key parameters.

   • Displays operating hours (hour meter).

2. Warning & diagnostic alerts

   • Provides visual (and sometimes audible) alarms if there’s a problem — such as low oil pressure, overheating, or hydraulic fault.

   • Often includes fault codes to help technicians troubleshoot.

3. System control & settings

   • Lets the operator adjust settings like work modes, idle speed, attachment configuration, and language preferences.

   • May include touchscreen input or physical buttons.

4. Communication with ECUs

   • Connects to the machine’s electronic control units (ECUs) via CAN bus or similar communication protocols.

   • Transmits data both ways (monitor shows info, and operator inputs commands).

5. Data logging

   • Stores event history and fault logs for maintenance and service technicians.

1. Blank or Dead Screen

• The display doesn’t turn on at all when the ignition is on.

• No backlight, no icons, and no response from buttons.
  Possible causes:

  • Power supply issue (blown fuse, bad wiring, or loose connector)

  • Internal circuit board damage

  • Faulty monitor unit itself

2. Dim, Flickering, or Faded Display

• Screen is very faint or the backlight flickers.

• Hard to read under sunlight.
  Possible causes:

  • Failing backlight or LCD panel

  • Voltage fluctuation or grounding problem

  • Moisture or heat damage

3. Display Freezes or Lags

• The screen freezes on one image.

• Takes a long time to load menus or switch screens.
  Possible causes:

  • Software or firmware corruption

  • Communication errors with the machine’s ECU

  • Internal memory fault

4. Missing or Incorrect Data

• Fuel level, engine hours, or hydraulic readings show “—” or wrong numbers.

• Some menu items disappear or can’t be accessed.
  Possible causes:

  • Faulty data connection (CAN bus issue)

  • Internal processing fault

  • Corrupted configuration data

5. No Warning Lights or False Alarms

• Machine runs but no warning indicators appear (even when faults exist).

• Or, random false alarms appear on the screen.
  Possible causes:

  • Logic board malfunction

  • Software communication error

  • Corrosion or short circuit inside the monitor

6. Buttons or Touch Inputs Not Responding

• Hard keys don’t work or only some respond.

• Touchscreen (if equipped) is inaccurate or dead.
  Possible causes:

  • Worn button contacts or touch sensors

  • Water/dust ingress

  • Damaged input controller

7. Intermittent Operation

• Works sometimes, goes blank randomly when hitting bumps or vibrations.
  Possible causes:

  • Loose wiring harness connection

  • Cracked solder joints on the circuit board

  • Failing power regulator inside the monitor

8. Burning Smell or Overheating

• Unit feels unusually hot or emits electrical smell.
  Possible cause:

  • Short circuit or component burnout inside the monitor
