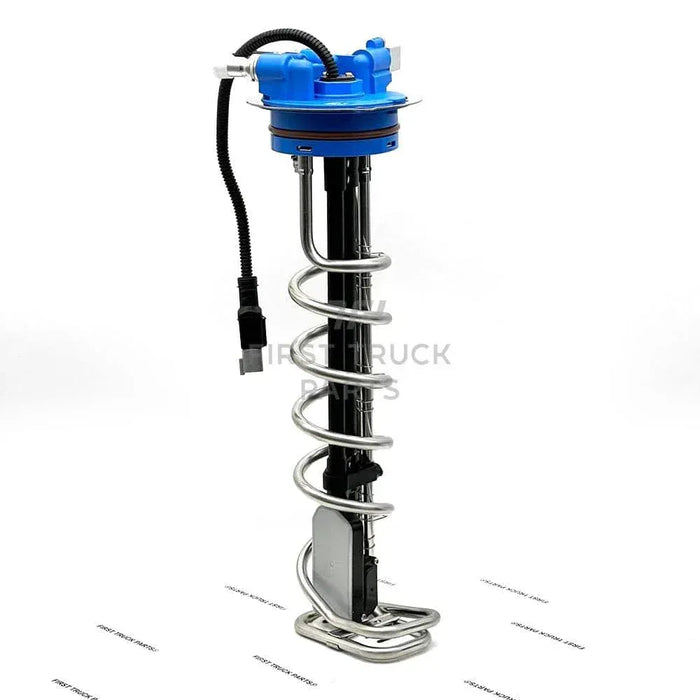

N8950876 | Genuine CAT® DEF (Diesel Exhaust Fluid) Sensor Head 40 micron 18"

1. Compatible Caterpillar Equipment

This DEF header unit is used across various Cat Tier 4 Final / Stage V heavy industrial equipment and machines, including:

• Track-Type Tractors / Dozers: D1, D2, D3, D4 series.

• Excavators: 315 GC, 320 GC, and related Cat 300-series excavators.

• Wheel Loaders & Compactors: Medium and small Cat wheel loader series.

• Cat Industrial Engines: C3.6, C4.4, and C7.1 ACERT™ industrial engine platforms.

1. What is it?

The control manifold serves as the central control header for the Selective Catalytic Reduction (SCR) emission system. It draws DEF from the tank, supplies it to the dosing unit, and houses essential electronic sensors that send real-time fluid diagnostics directly to the engine's Electronic Control Module (ECM).

2. Core Functions

• Fluid Level Monitoring: Uses ultrasonic or float-based sensors to measure the remaining DEF level to prevent running the system dry.

• Fluid Quality & Concentration Sensing: Continuously measures DEF purity (standard ~32.5% urea concentration) to prevent improper fluids from damaging the SCR system or triggering engine derate.

• Integrated Tank Heating: Features an internal coolant loop that circulates engine coolant through the header to thaw frozen DEF in cold conditions.

• Suction & Return Lines: Contains integrated pickup tubes and mesh filtration to supply clean DEF to the dosing pump and return unused fluid to the tank.

1. Engine Power Derate & Shutdown Countdown

To comply with EPA and Stage V emissions standards, a failure in the DEF header sensors forces the Cat ECM into a progressive engine derate:

• Inducement Warning: The operator display shows an emissions warning along with a timer/countdown.

• Power & Speed Derate: Engine power is reduced by 25% to 40%, and maximum engine speed is limited. Continued operation without fixing the fault can lead to a 5 mph / low-idle forced shutdown mode.

2. Diagnostic Trouble Codes (DTCs)

Connecting Cat Electronic Technician (Cat ET) software or an OBD/J1939 scanner will trigger specific SCR system fault codes:

• E1376 / E1377: DEF Tank Level Sensor Voltage Above/Below Normal.

• E1389: DEF Quality (Concentration) Sensor Failure / Poor DEF Quality Detected.

• E1390: DEF Tank Temperature Sensor Fault.

• SPN 1761 / FMI 9 or 19: DEF Level - Abnormal Update Rate or Error.

• SPN 3516 / FMI 2, 9, or 12: DEF Concentration - Data Erratic, Intermittent, or Bad Device/Component.

3. False or Frozen DEF Level Readings

If the ultrasonic or electronic level sensor inside the header fails:

• The gauge on the instrument panel may stay stuck at 100% (Full) or 0% (Empty) regardless of how much DEF is actually in the tank.

• The system may trigger a "DEF Tank Empty" warning even when the tank has just been refilled.

4. Incorrect DEF Quality Warnings

An internal failure of the concentration sensor sends erratic readings to the ECM. Even if you fill the tank with fresh, high-grade DEF (~32.5% urea), the machine may falsely trigger a "Poor Quality DEF Detected" alert on the display.

5. DEF Freezing / Heating System Faults in Cold Weather

If the integrated coolant heating loop valve or temperature sensor fails:

• In freezing conditions, frozen DEF will not thaw properly, starving the dosing pump of liquid DEF.

• The ECM detects a lack of fluid circulation and enters an emissions fault state.
