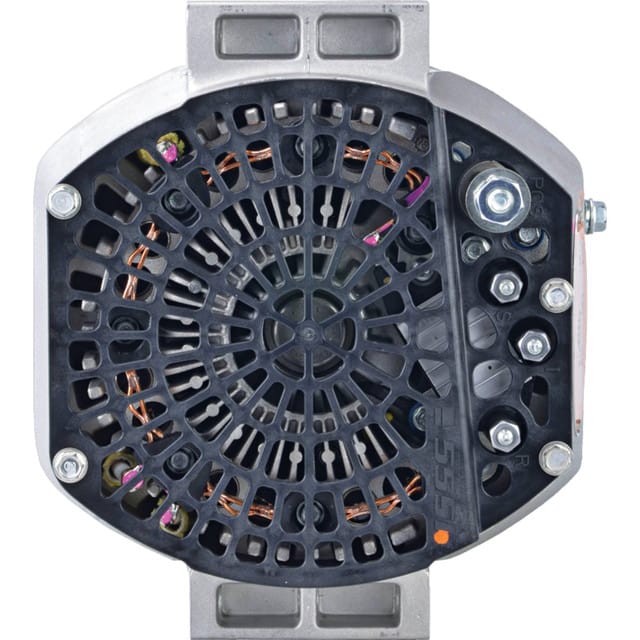

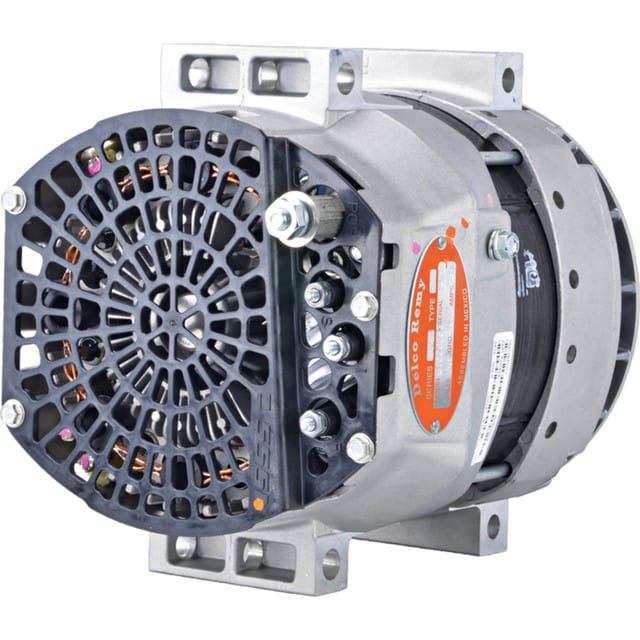

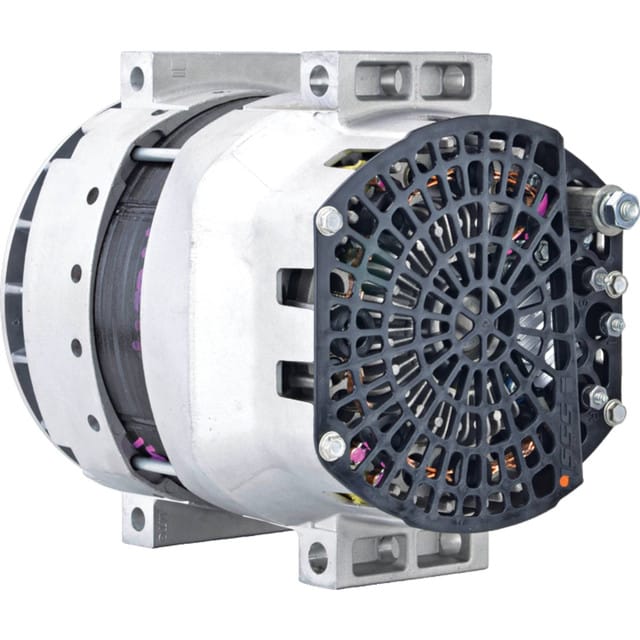

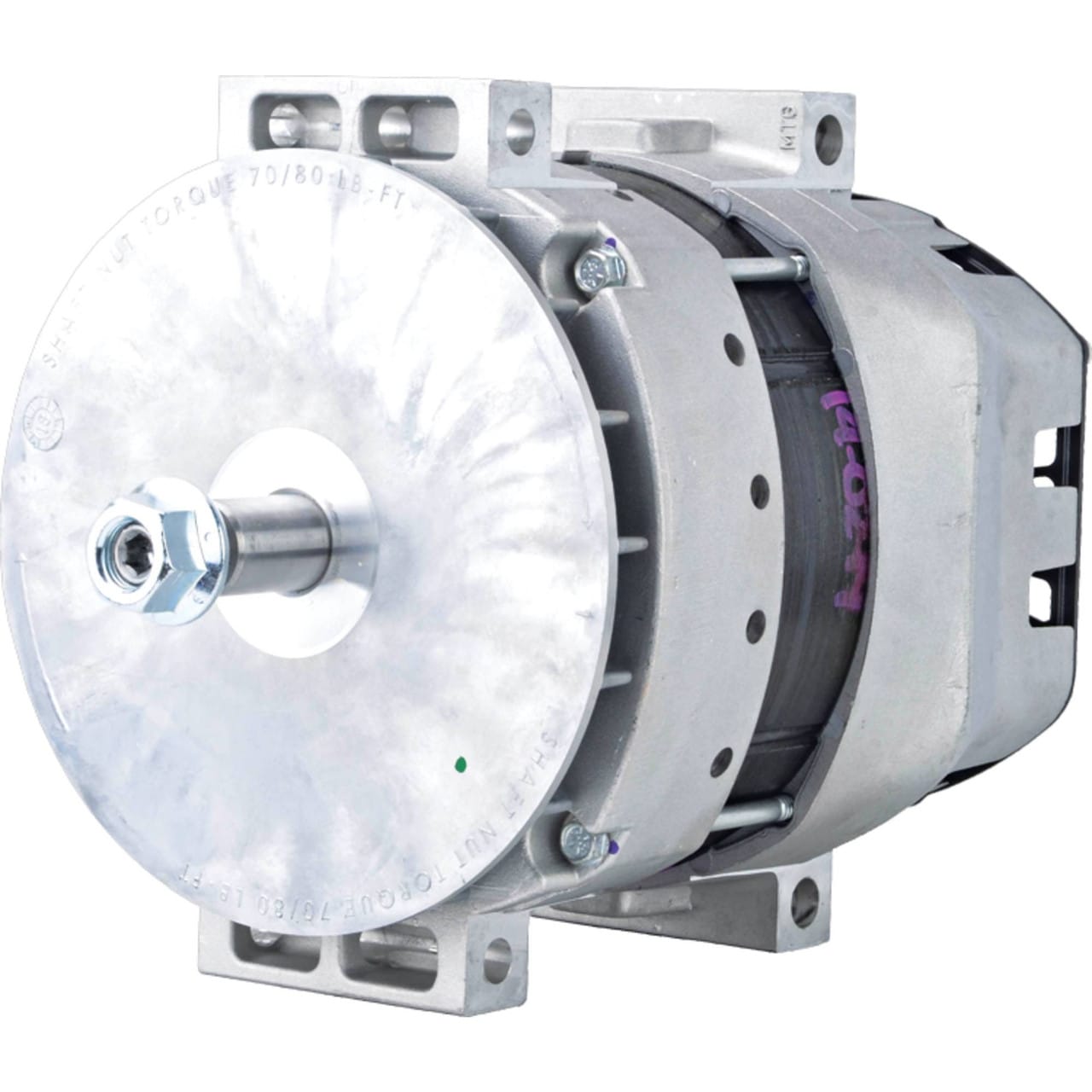

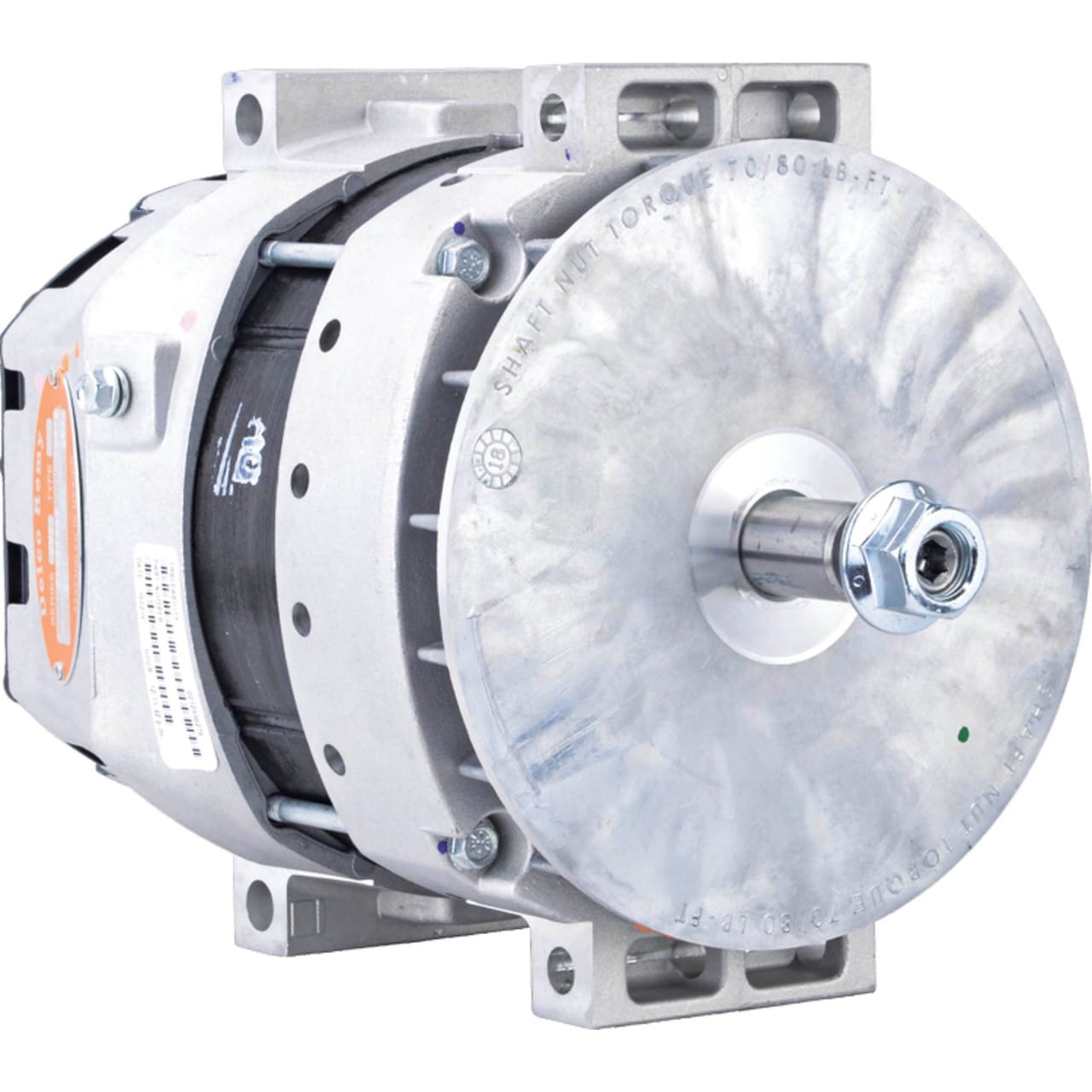

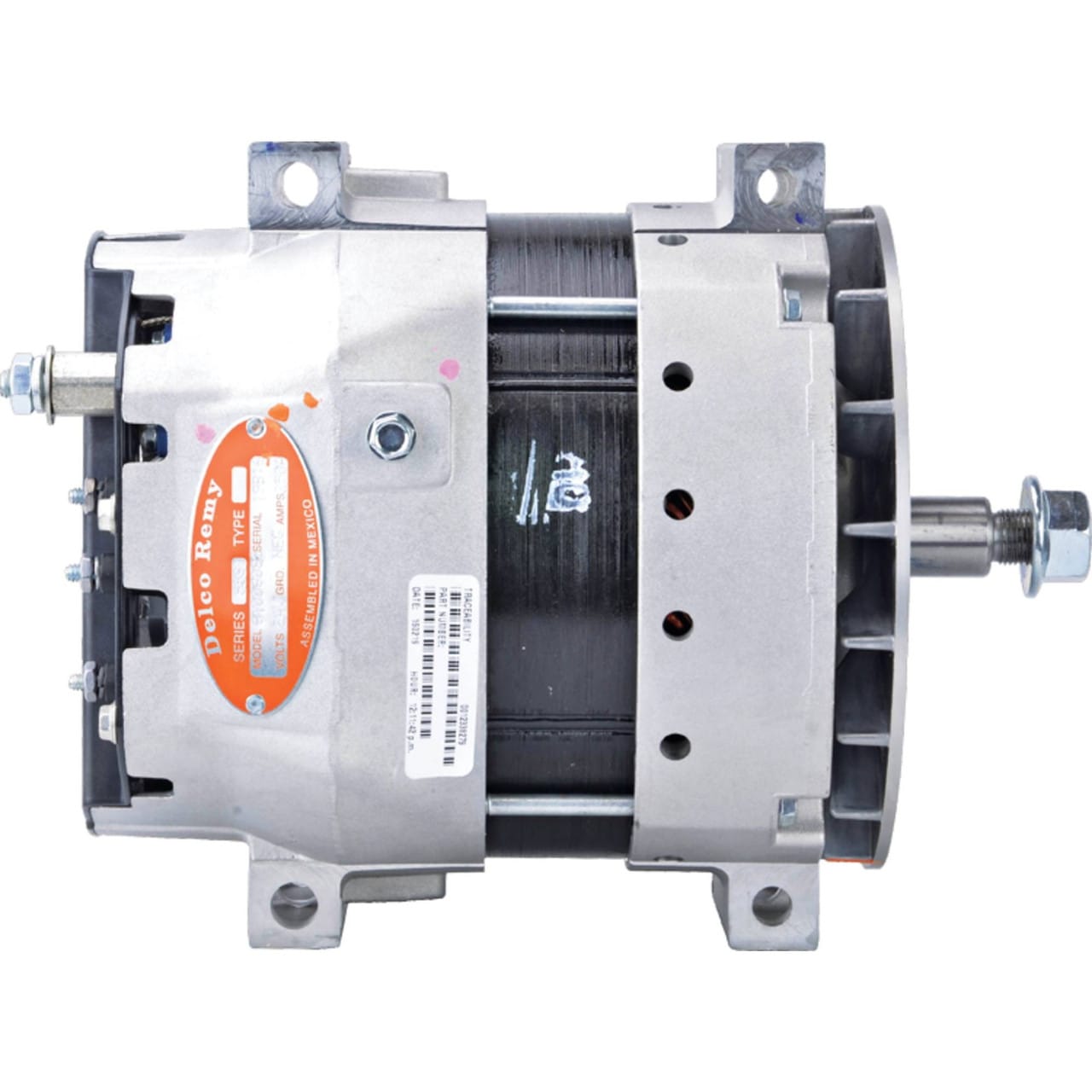

61006082-12B1 | Delco-Remy® Alternator 55SI, 24V 250 Amps

•  Mounting Type: Most commonly available in J180 Hinge Mount or Pad Mount configurations.

Engine Compatibility: Widely used on large displacement diesel engines, including:

• Cummins: ISX, X15, QSK series.
• Detroit Diesel: DD13, DD15, DD16.
• Caterpillar: C13, C15, C18.

Common Applications:

• Mining & Construction: Haul trucks, excavators, and loaders (Komatsu, CAT, Liebherr).
• Mass Transit: Articulated city buses and motor coaches (New Flyer, MCI, Prevost).
• Oil & Gas: Fracking rigs and stationary power units.
• Military: Heavy tactical vehicles.

•  Brushless Technology: Unlike standard alternators, the 55SI has no brushes. This means fewer moving parts to wear out, no sparks (safe for hazardous environments), and a significantly longer service life—often lasting over 1,000,000 miles in on-highway applications
• High Output at Idle: It is designed to provide substantial current even when the engine is idling, which is critical for buses or service trucks that spend a lot of time stationary but have high electrical demands.
• Efficiency: The 55SI is highly efficient, meaning it converts more mechanical energy into electrical power with less heat waste, which helps improve overall fuel economy.
• Dual Internal Fans: It utilizes two internal fans to pull air through the unit, keeping the electronics cool even in high-temperature engine compartments.

• Low Battery Voltage / Charging Warning: The most common sign is a dash warning light or a voltmeter reading below 26–27V while the engine is running. A healthy 24V system should stay between 27.5V and 28.5V.
• Electrical Component Malfunction: With 250 Amps of capacity, a failing unit will cause noticeable issues in high-draw systems. You might notice dimming lights, slow lift-gate operation, or air conditioning fans losing speed.
• Overheating and Burning Smell: If internal diodes fail or if there is a short circuit, the alternator can become extremely hot. You may smell burning insulation or hot metal.
• Mechanical Noise: Grinding or squealing sounds usually point to failing internal bearings. In the 55SI, which is a heavy unit, bearing failure can lead to catastrophic internal damage if not addressed.
• "Check Engine" or J1939 Data Link Errors: Modern 55SI units often communicate with the vehicle's ECM. Fault codes related to "Charging System Voltage Low" or communication loss with the alternator are clear indicators.
• Battery Gassing or Boiling: If the voltage regulator fails "open," the alternator may pump out excessive voltage (above 30V), which can cook the batteries and cause a sulfuric acid smell (rotten eggs).
