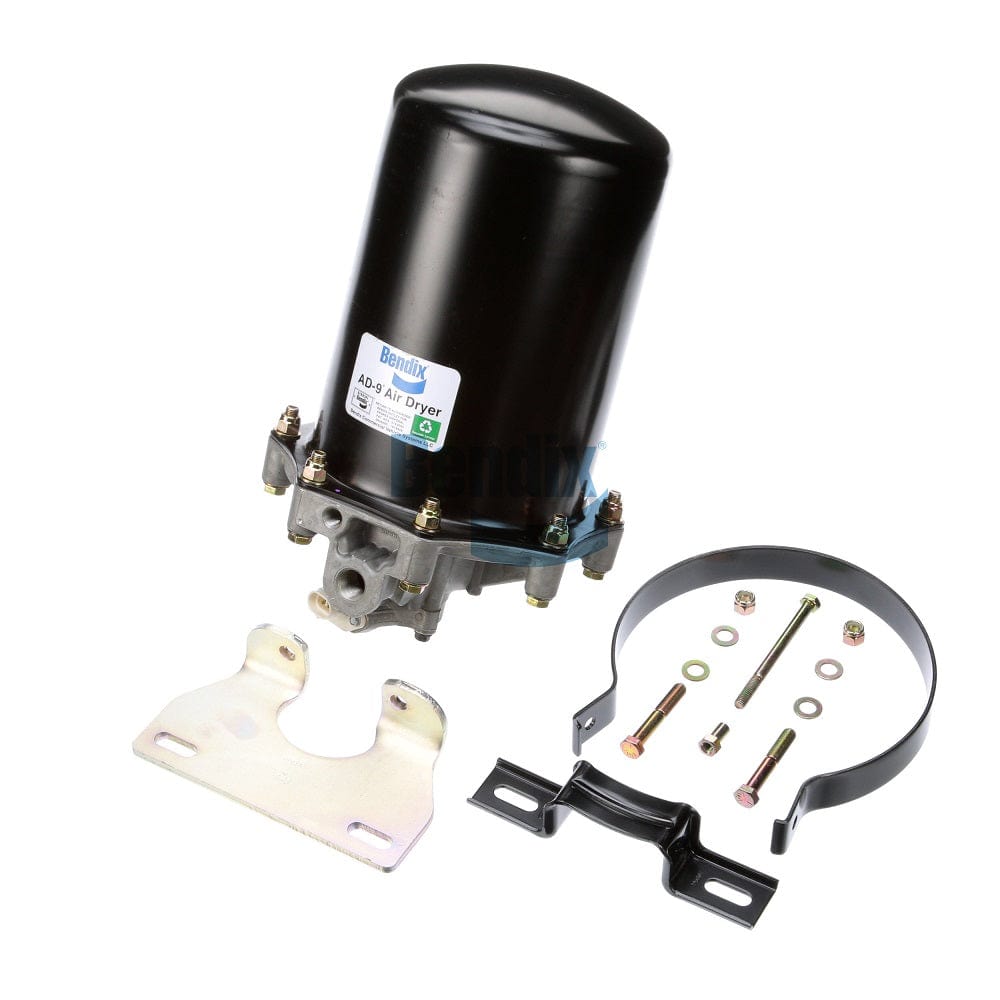

| Description | AD-9 Air Dryer 12V For Freightliner, Mack, International, Volvo/White, Meritor/Rockwell |
|---|
| Condition | New |
|---|
| Brand | Bendix® |
|---|
| Part Number | 1093794 |
|---|
Fitment Guide
|
Freightliner, Mack, International, Volvo/White, Meritor/Rockwell, and similar vehicles that use Bendix‑style air dryers
|
Specifications:
|
Heater Voltage
|
12 Volt
|
|
Heater Watts
|
75 Watt
|
|
Supply
|
1/2" NPT
|
|
Delivery
|
1/2" NPT
|
|
Control
|
1/4" NPT
|
A Bendix AD-9 Air Dryer is a heavy-duty truck air system component that removes moisture, oil vapor, and contaminants from compressed air before the air goes into the air brake system.
-
Dry the compressed air
- Removes water vapor from air coming from the air compressor.
-
Filter contaminants
- Traps oil mist, dirt, and debris before they enter the system.
-
Protect air brake components
- Helps prevent corrosion and damage to valves, tanks, and brake chambers.
-
Prevent freezing in cold weather
- Stops water from freezing inside air lines and valves.
-
Improve brake system reliability
- Keeps air pressure systems operating consistently and safely.
-
Reduce maintenance costs
- Less moisture means fewer repairs and less manual draining of air tanks.
-
Extend component lifespan
- Air tanks, valves, ABS components, and compressors last longer.
|
Signs of Faulty:
-
Air leak from purge valve
- Constant hissing from the bottom of the dryer.
- One of the most common signs.
-
Frequent or abnormal purging
- Dryer purges too often, weakly, or continuously.
-
Slow air pressure build-up
- Truck takes longer than normal to reach operating air pressure.
-
Excess moisture in air tanks
- Water drains out of tanks frequently.
- Indicates the desiccant is no longer drying air properly.
-
Oil contamination in air system
- Oily residue in tanks or valves.
- Can indicate compressor or dryer failure.
-
Frozen air lines or valves (cold weather)
- Moisture bypasses the dryer and freezes in the system.
-
Air governor cycling issues
- Compressor cuts in/out improperly due to dryer problems.
-
Brake system problems
- Sticky valves, sluggish brakes, or ABS faults caused by contamination.
-
Low air pressure warnings
- Dash air pressure alarms or warning lights.
- Compressor overworking or overheating
- Faulty dryer can increase compressor workload.
|
