4383932 | Genuine Paccar® Engine Coolant Monitoring Sensor (for Peterbilt and Kenworth)

1. Primary Truck Brand Compatibility

This Paccar OEM sensor is engineered for heavy-duty Class 8 trucks built by Paccar’s main subsidiaries:

• Peterbilt Motors Company

• Kenworth Truck Company

• (Cross-Compatibility Note): This part is also widely cross-referenced as a direct fit for many Mack Trucks and International/Navistar chassis utilizing legacy engine models.

2. Compatible Truck Models

It is a direct fit for several classic and modern heavy-duty trucks, including:

• Peterbilt: 379, 389, 579, and 386 models.

• Kenworth: T660, T680, T800, and W900 models.

3. Engine Compatibility

Because Paccar trucks host a variety of engines, this sensor is primarily used to monitor coolant levels for:

• PACCAR MX-Series (MX-11, MX-13) engines.

• Cummins Heavy-Duty (ISX15, X15, M11, ISM, N14) engines installed within Kenworth and Peterbilt chassis.

1. What is it?

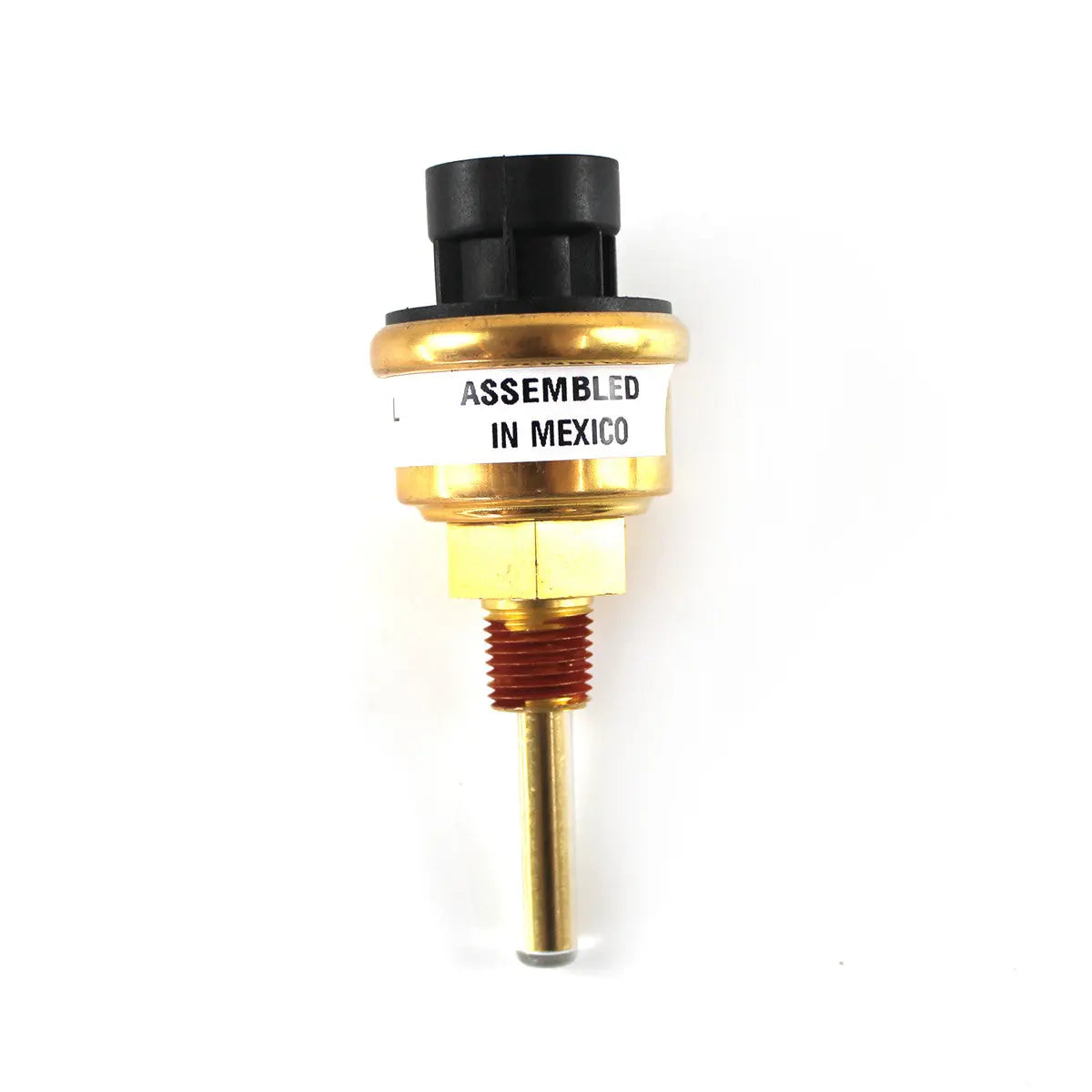

The 1MR4299 is a probe-style switch that threads directly into the radiator or coolant surge tank. It has a durable brass body, a pre-applied thread sealant, and a 4-pin connector on the back. It acts as an early-warning device, communicating directly with the vehicle's Engine Control Unit (ECU) to ensure the engine never runs with insufficient coolant.

2. Core Functions & Operation

• Fluid Conductivity Sensing: The extended white probe tip uses electrical conductivity to determine if it is submerged in liquid.

  • When submerged: The sensor detects the coolant, confirming the level is safe.

  • When dry (exposed to air): The circuit is broken, indicating low coolant.

• Automatic Engine Protection: If the sensor detects a dry condition for more than a few seconds, the ECU alerts the driver via a "Low Coolant" dash light. If ignored, the ECU can trigger a safety engine shutdown (derate) to prevent the cylinder head from cracking or the head gasket from blowing.

• Corrosion Resistance: Built with high-grade brass to withstand constant exposure to hot, pressurized, and chemically active antifreeze.

1. False "Low Coolant" Dash Warning Lights

The most common sign of a failing sensor is a persistent "Low Coolant" warning on your dashboard, even though you have physically verified that your radiator or surge tank is completely full. This happens when the sensor’s probe tip becomes coated in scale, dirt, or oil, preventing it from detecting the liquid's electrical conductivity.

2. Intermittent Engine Derate or Automatic Shutdown

To protect the engine from catastrophic heat damage, the Paccar MX or Cummins ECU is programmed to shut down the engine or severely limit its power (derate) if it believes there is no coolant. A failing sensor that randomly loses its electrical connection can cause the truck to suddenly lose power on the highway, flashing emergency shut-down warnings.

3. Physical Leakage of Coolant Through the Sensor

Over time, the high pressure and extreme heat within the cooling system can degrade the internal seals of the brass sensor. If you notice green or red coolant dripping from the threads, or—more critically—coolant leaking into the 4-pin electrical connector plug itself, the sensor has failed internally and must be replaced immediately to prevent harness damage.

4. No Dashboard Warning When Coolant is Actually Low

This is the most dangerous failure mode. If the internal circuitry of the 1MR4299 sensor shorts out in a "closed" position, it will continuously report to the ECU that the tank is full, even if it is bone dry. This can lead to severe engine overheating, a blown head gasket, or cracked cylinder heads because the driver receives no warning of a critical coolant leak.

5. Corrosion or Bent Pins in the Electrical Connector

If moisture or road salt gets past the harness seal, the pins inside the 4-pin connector will corrode. This leads to erratic voltage signals being sent to the ECU. If you unplug the harness and see green oxidation, it creates resistance in the circuit, which the engine computer interprets as a sensor failure.
