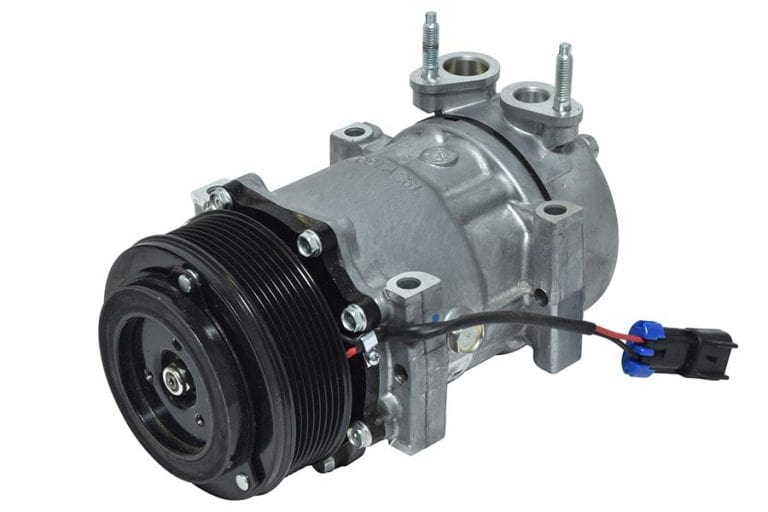

59-8340 | International® A/C Compressor w/clutch (Weight: 30 lbs)

• Weight: 30 lbs
• Fit for: Navistar, International
• Specifications:
  • Volts: 12v

  • Rotation: CW

  • Clutch Diameter: 125mm

  • Dimensions - 12 × 9 × 9 in

  • Oil Type: PAG100

  • Factory Oil Charge: 300cc Oil

  • No. of Grooves: 8 groove

  • Fitting Style: Pad-Tear Drop type

  • Fitting Port Position: Side of head

  • Belt Type: Serpentine

  • Refrigerant Type: R134a

  • Wire Type: 2 Wire Metripak
• Functions:

  • Clutch engagement: The compressor is equipped with a clutch mechanism that allows it to engage and disengage as needed.

  • Refrigerant compression: The primary function of the A/C compressor is to compress low-pressure refrigerant gas into high-pressure gas. This compression increases the refrigerant's temperature, allowing it to release heat outside the vehicle.

  • Refrigerant circulation: The compressed refrigerant circulates through the A/C system, traveling through the condenser, expansion valve, evaporator, and back to the compressor, where the cycle repeats. This process removes heat from the interior of the vehicle, resulting in cooler air.

Navistar International Corporation, an American company, manufactures a wide range of vehicles, including trucks, buses, and defense vehicles, along with engines. It's the first to be EPA-certified for meeting 2007 standards. They also provide high-quality replacement parts and accessories, ensuring top performance. Navistar is actively developing electric and hybrid solutions for transportation, serving logistics, construction, and public transport sectors.
