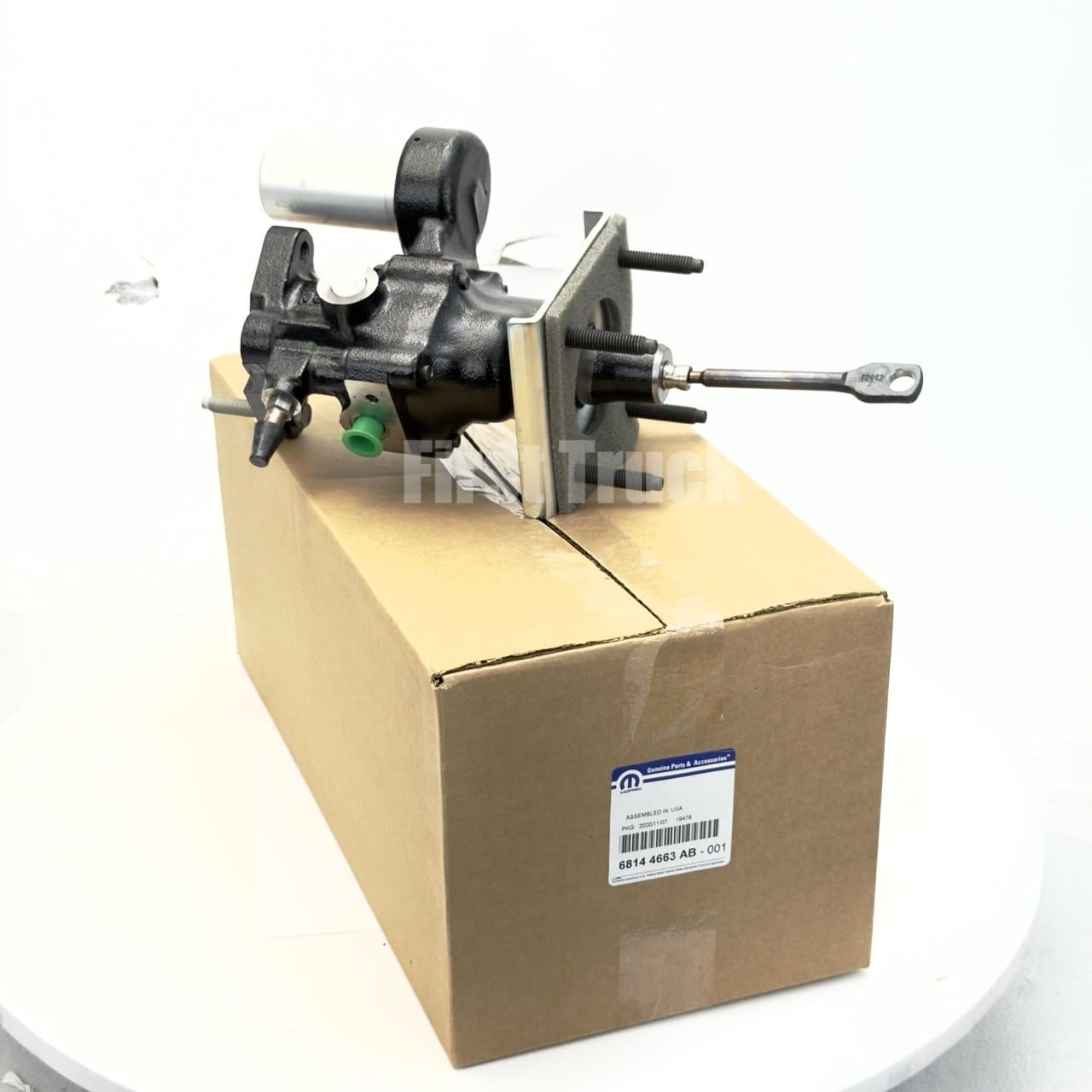

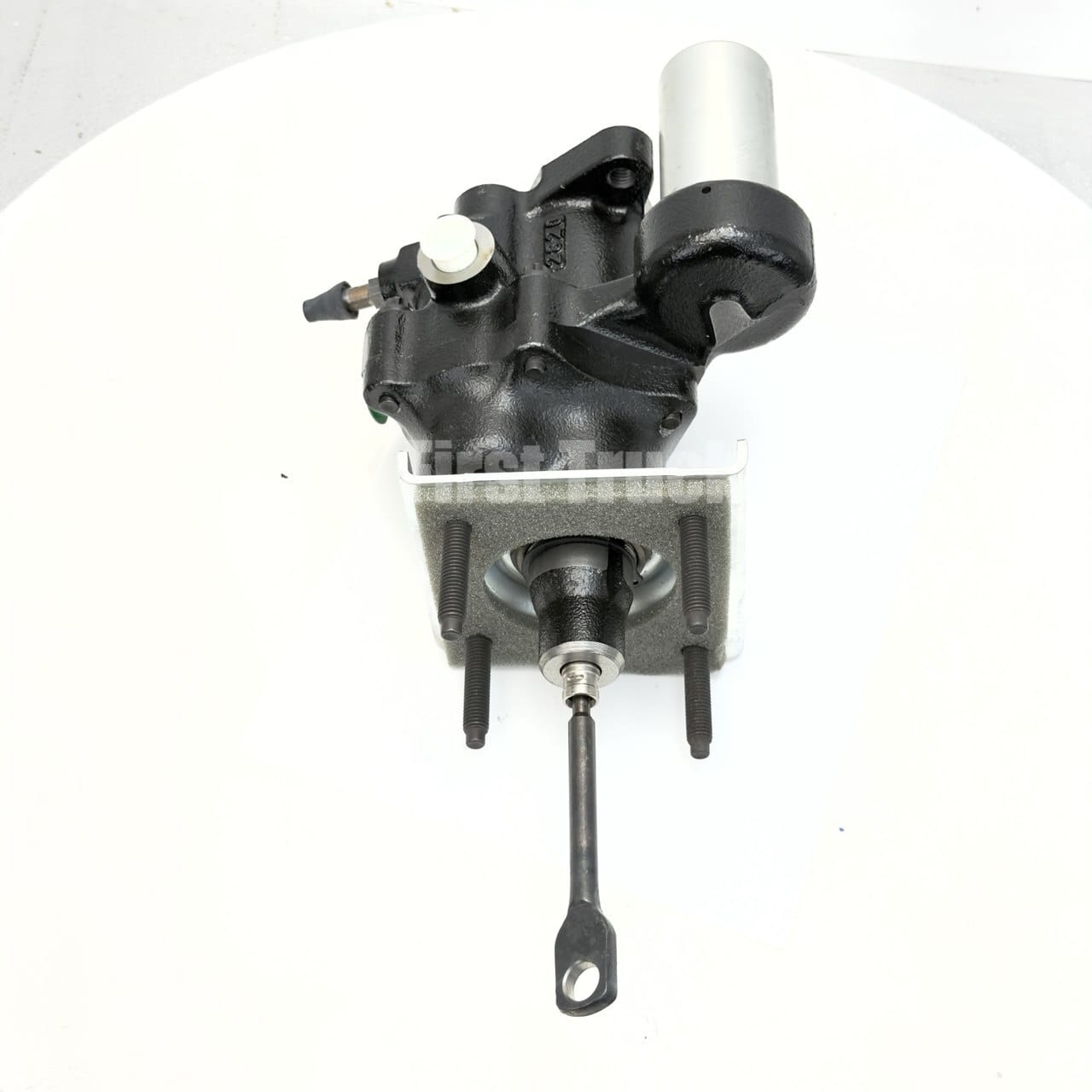

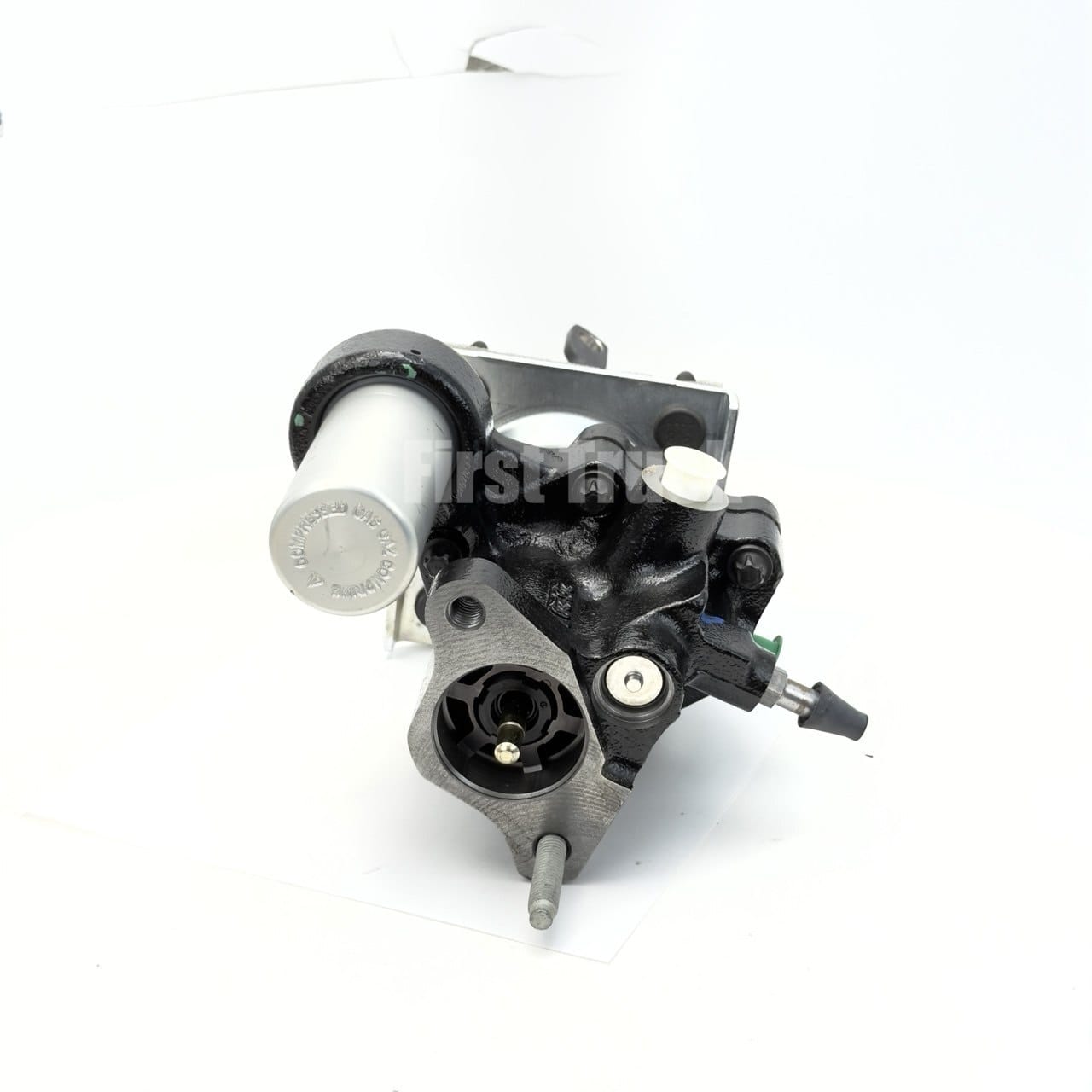

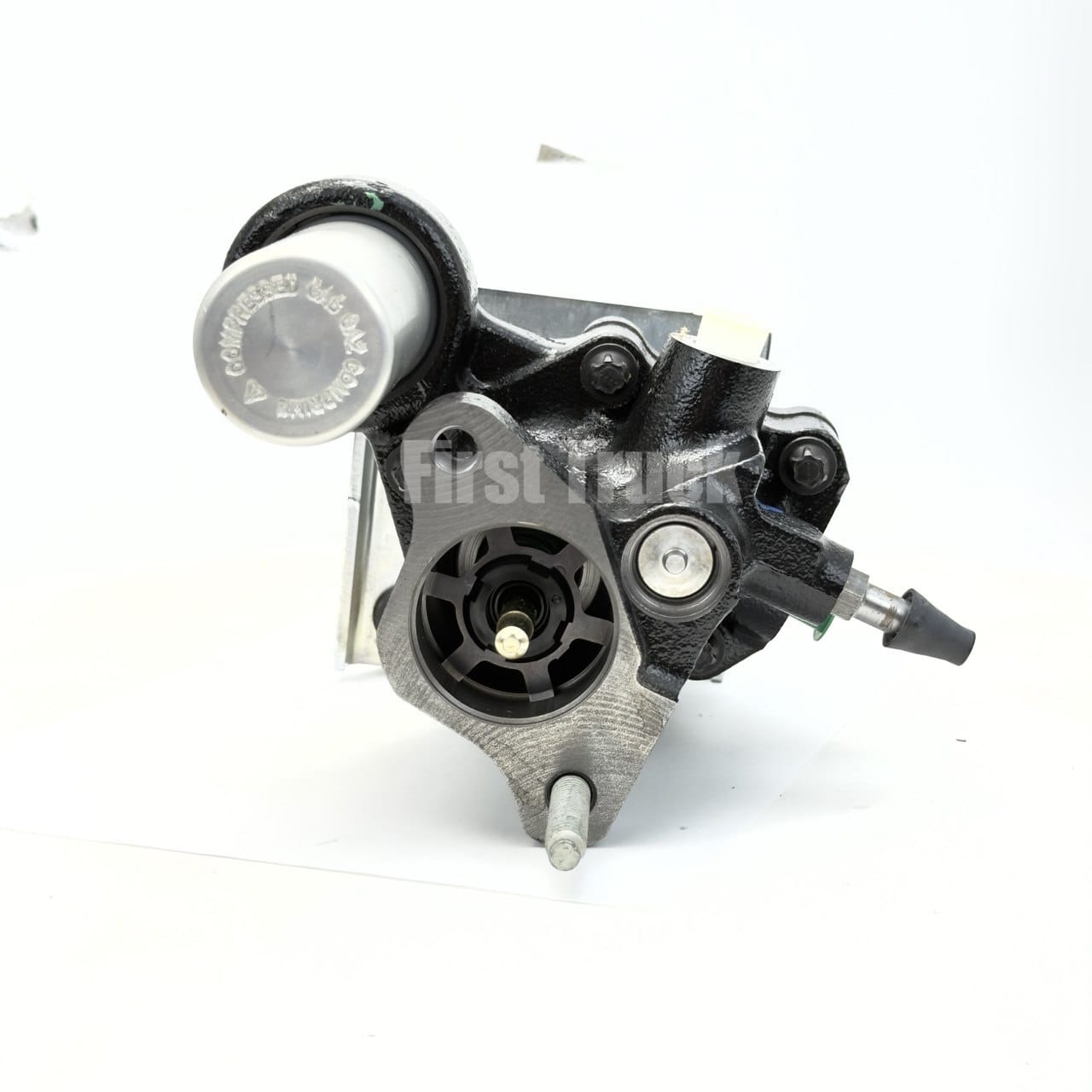

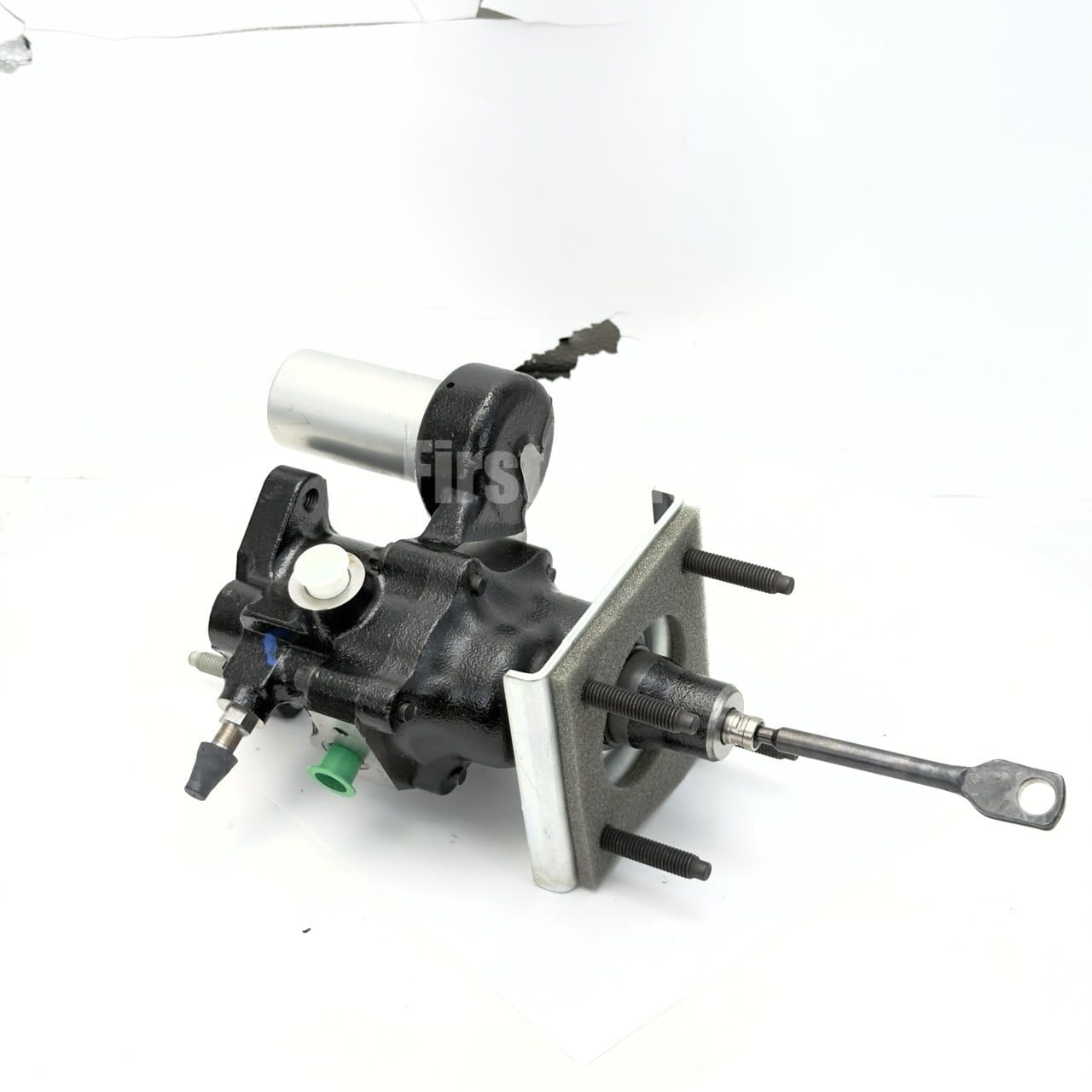

68144663AA | Genuine Mopar® Hydraulic Power Brake Booster

1. Primary Vehicle Compatibility

This Hydro-Boost unit is engineered specifically for heavy-duty RAM truck applications equipped with high-torque diesel and heavy gas engines where engine vacuum is low or nonexistent:

• RAM 2500 (Model Years: 2003–2010 / Heavy-Duty 3/4-Ton Trucks)

• RAM 3500 (Model Years: 2003–2010 / Heavy-Duty 1-Ton Dually & Single Rear Wheel)

• RAM 4500 / 5500 (Model Years: 2008–2010 / Chassis Cab Commercial Trucks)

2. Engine Platform Compatibility

Because diesel engines do not produce natural manifold vacuum, this hydraulic booster is mandatory for:

• 5.9L Cummins I6 Turbo Diesel (2003–2007)

• 6.7L Cummins I6 Turbo Diesel (2007.5–2010)

• 5.7L HEMI V8 Gas (Heavy-Duty 2500/3500 models using hydraulic boost configurations)

3. Key System Features

• Hydro-Boost Technology: Connects inline with the power steering fluid lines to deliver significantly higher clamping force to the master cylinder than vacuum boosters.

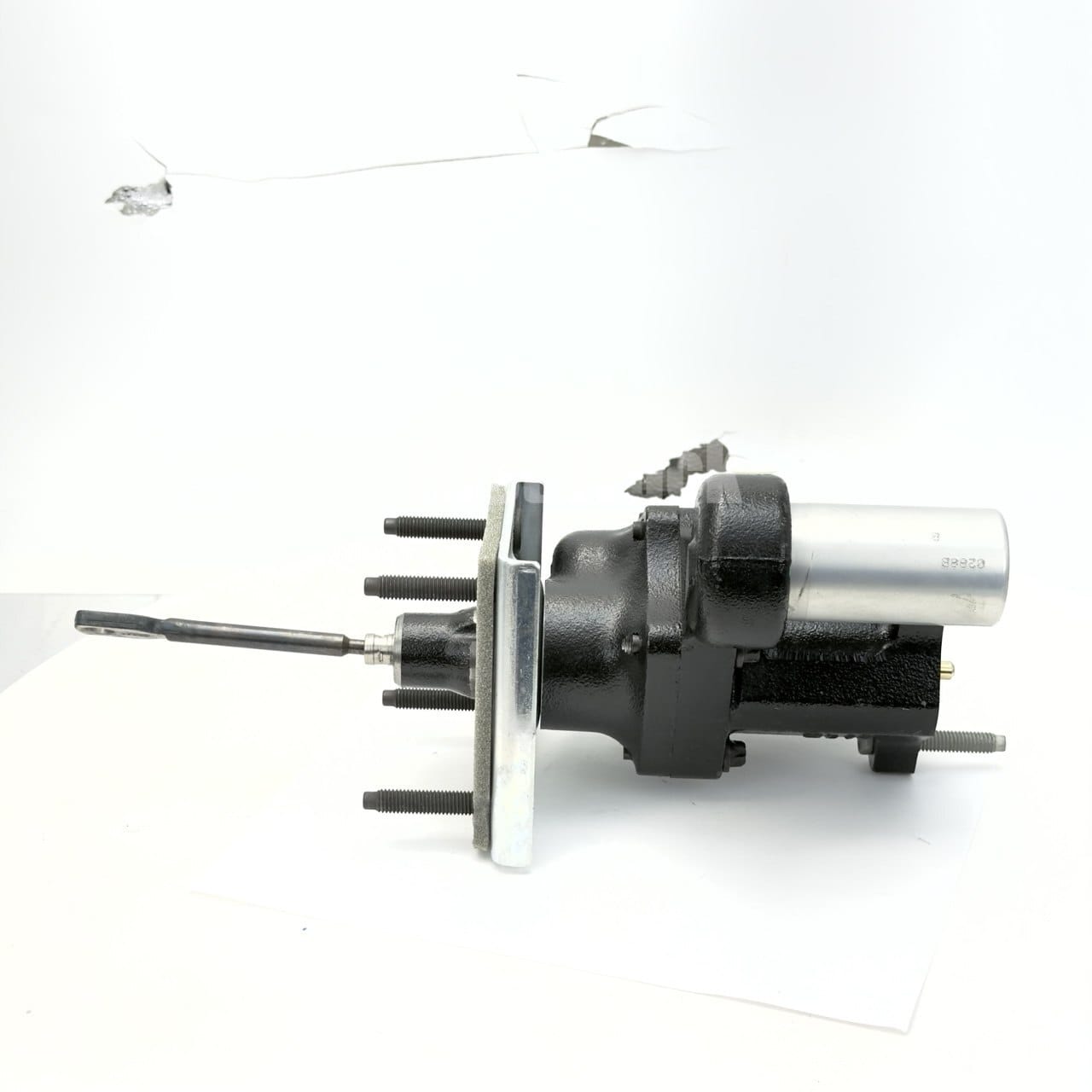

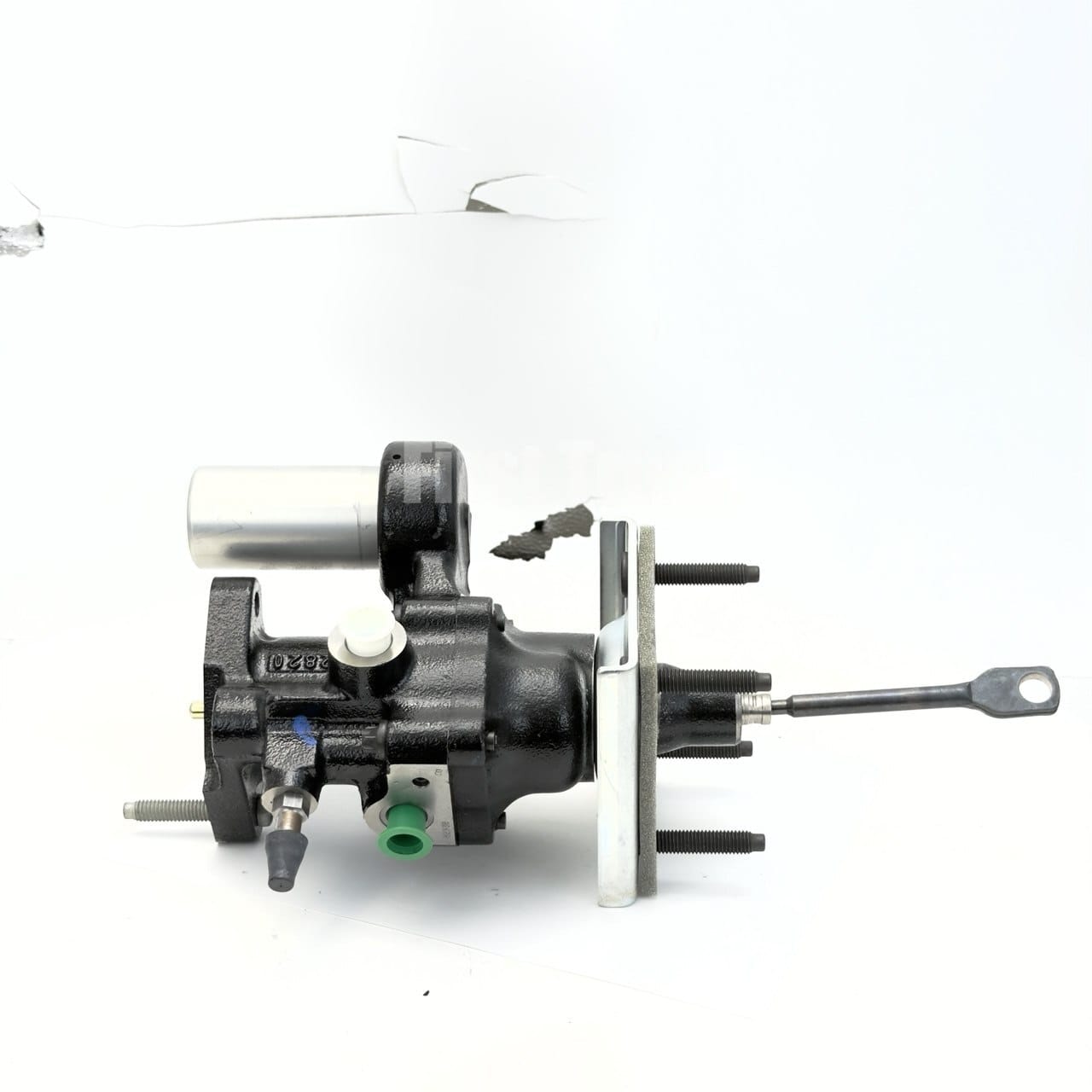

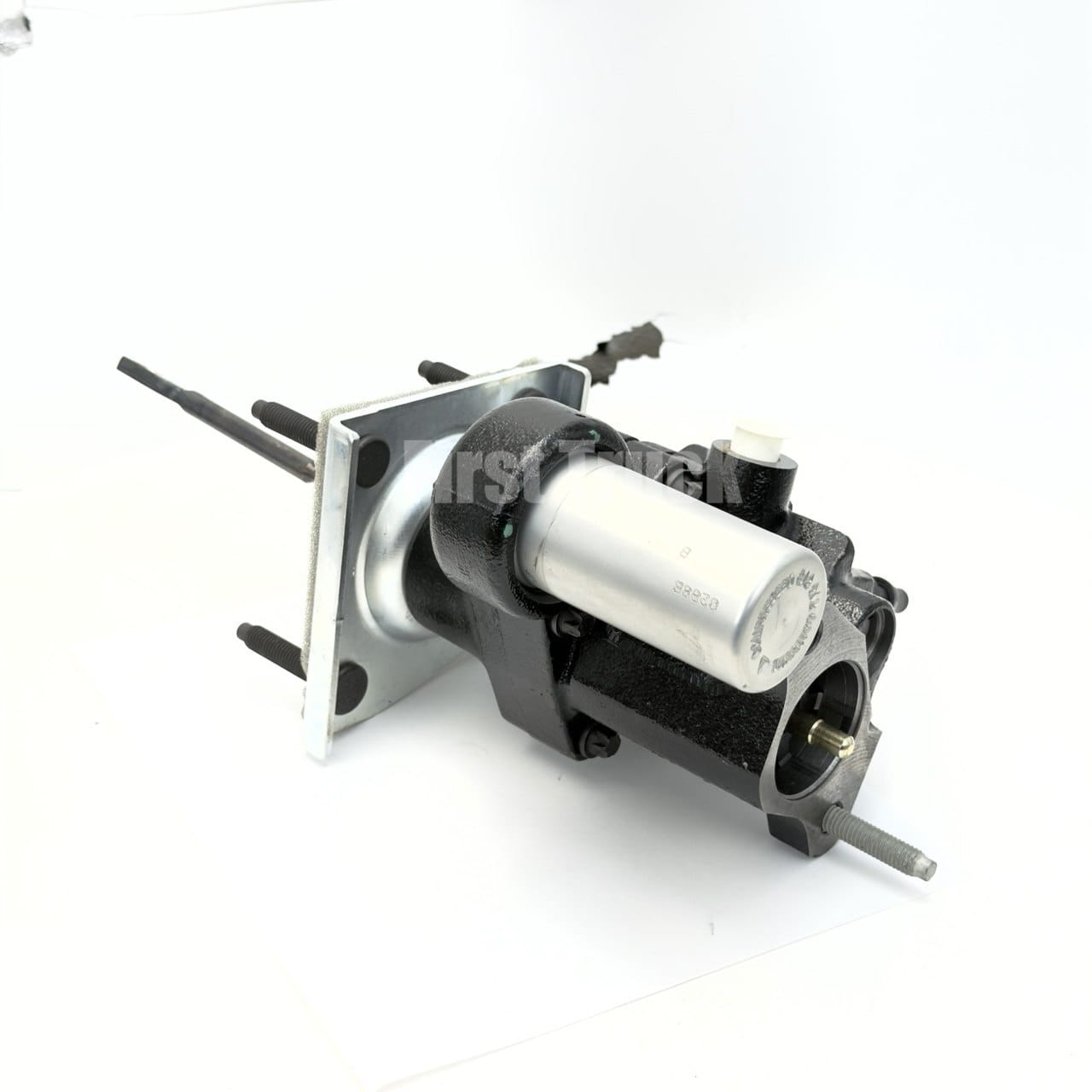

• Accumulator Reserve: Features a nitrogen-charged accumulator cylinder (the silver canister at the bottom) that stores emergency hydraulic pressure, providing 1–2 full power-assisted stops if the engine or belt fails.

1. What is it?

Unlike standard passenger vehicles that use engine intake vacuum to amplify foot pressure on the brake pedal, the unit uses hydraulic power. It taps directly into the high-pressure fluid line coming from the vehicle's power steering pump to provide strong, consistent braking assist. This design is necessary because heavy-duty diesel engines (like the Cummins 5.9L and 6.7L) do not generate natural intake vacuum.

2. Core Functions & Features

• Massive Stopping Power: Hydraulic pressure can reach over 1,200–2,000 PSI, giving heavy-duty trucks towing heavy loads significantly more clamping force than traditional vacuum boosters.

• Firm Pedal Feel: Provides a crisp, immediate brake pedal response without the "spongy" feel associated with vacuum units under heavy load.

• Nitrogen Accumulator Reserve: Includes a pressurized reserve cylinder (the silver/black canister attached to the main body). If the engine stalls or the power steering belt breaks, this accumulator retains enough hydraulic pressure to give the driver 1 to 2 full power-assisted stops to safely bring the truck to a halt.

1. Extremely Stiff or Hard Brake Pedal

The most immediate sign of a failing Hydro-Boost unit is a rock-hard brake pedal that requires immense leg pressure to bring the truck to a stop. If the internal spool valve jams or seals blow, hydraulic fluid can no longer assist the pedal movement.

2. Simultaneous Steering and Braking Issues

Because the 52-7416 unit shares fluid with the power steering system, a internal failure in the booster often affects steering performance. You may experience a stiff steering wheel when pressing the brake pedal, or a vibrating/whining steering wheel during braking maneuvers.

3. Power Steering / Brake Fluid Leaks

Hydraulic boosters operate under extremely high pressure (over 1,200 PSI). Over time, the internal rubber seals degrade, leading to Power Steering Fluid leaking out from:

• The weep hole between the Hydro-Boost unit and the master cylinder.

• The mounting point behind the brake pedal inside the cabin firewall.

• Hose connections on the booster housing.

4. Slow Brake Pedal Return (Brakes Dragging)

If the internal return spring breaks or the hydraulic spool valve gets stuck, the brake pedal will slowly return to its top position after being pressed. This leaves the brakes partially engaged, causing hot brake rotors, a burning smell, and severe vehicle drag.

5. Loud Whining or Groaning Noises When Braking

Air entering the hydro-boost system through bad seals, or fluid restriction inside the 52-7416 valve body, will cause the power steering pump to whine, groan, or hum loudly whenever you apply the brakes.
