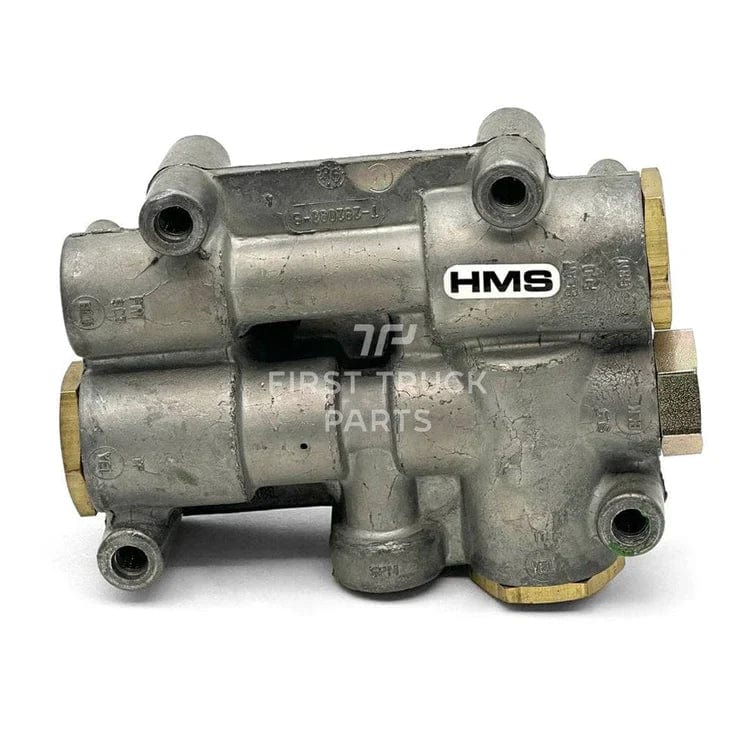

800588 | International® Valve, Tractor Protection TP-5™ (Fit for: Navistar, International)

Description: Valve, Tractor Protection TP-5™
Condition: New
Brand: International®
Part Number: 800588

• Fit for: Navistar, International
• Weight: 5 lbs
• The Bendix® TP-5™ tractor protection valve is a panel or cross member mounted unit designed to replace the Bendix® TP-3® valve plus two additional double check valves and quick release functions. It may be used in conjunction with the
  Bendix® MV-3® module or independently. It contains a service line shut-off valve with exhaust function, a service line quick release valve and two double check valves., OPERATION. The function of the TP-5™ valve is to receive all pneumatic signals pertinent to the operation of the trailer brake system, transmit the same to the trailer and also to protect the tractor air supply in case of separation of the connecting lines to the trailer.
  TRACTOR PROTECTION PORTION
  Air from the trailer supply control valve in the cab, such as the MV-3® module, enters at the trailer supply delivery port and passes out the trailer supply port and simultaneously acts upon the service line shut-off piston moving the service line inlet valve off its seat and opening the service line
