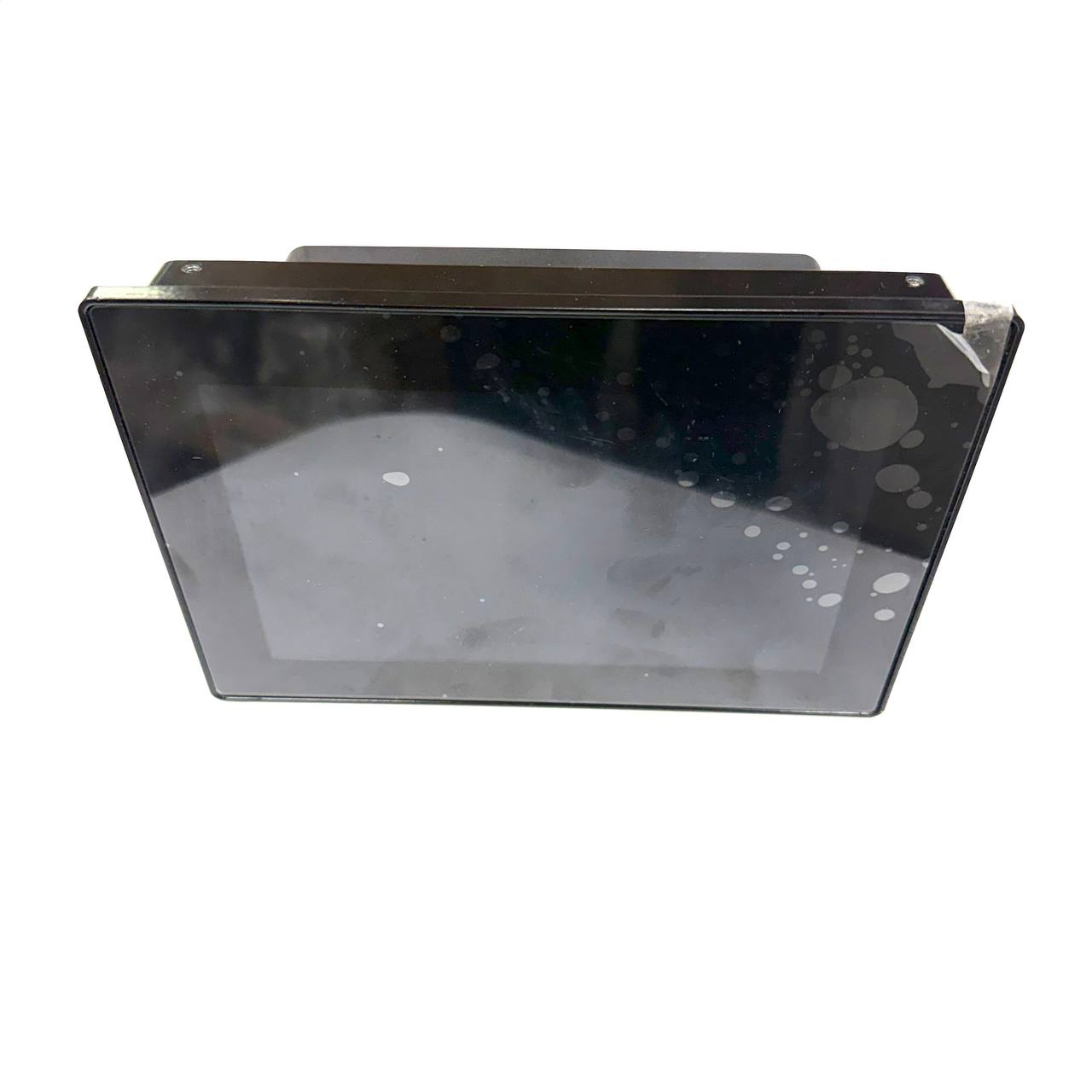

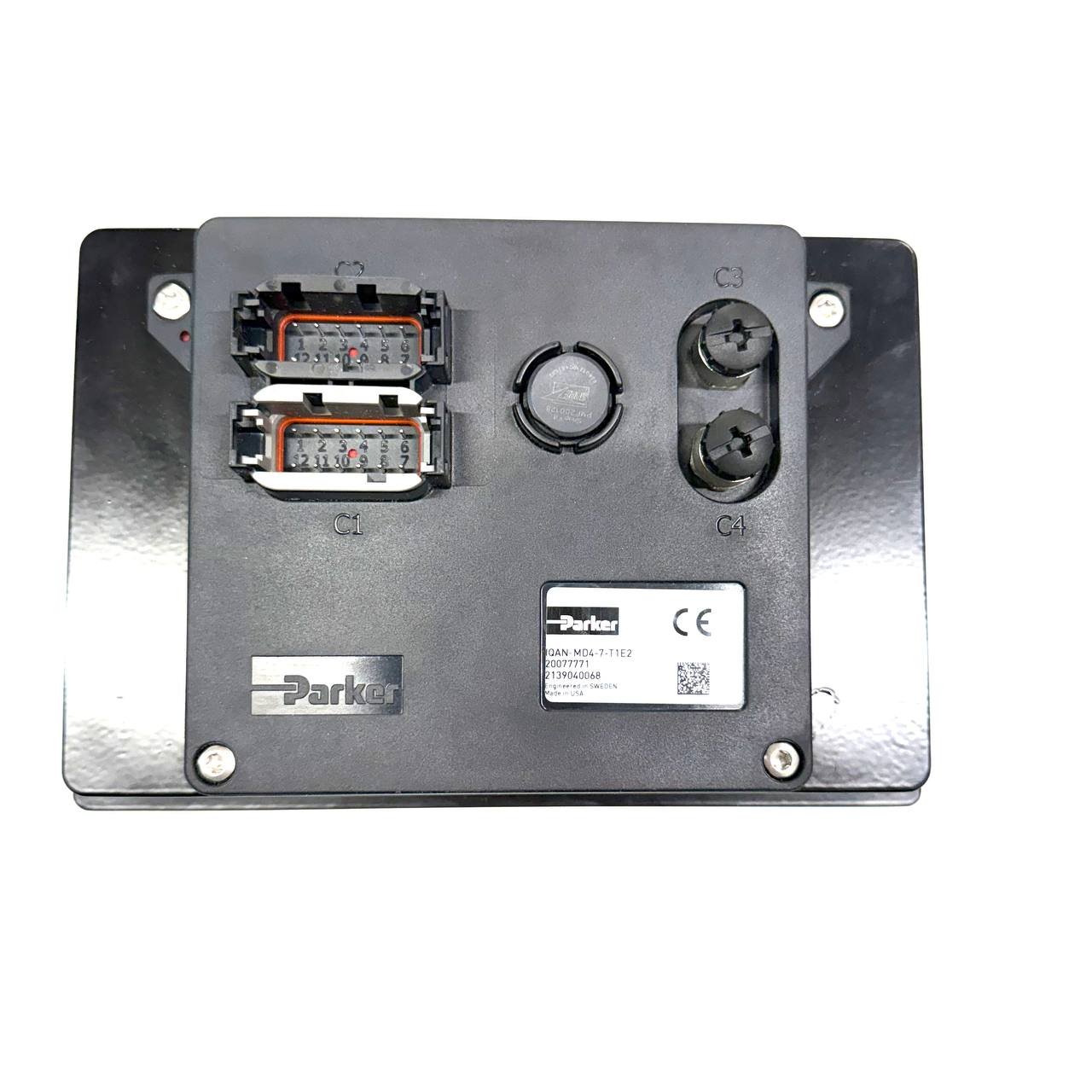

IQAN-MD4-7-T1E2 Genuine Parker® Master Display Module IQan 20077771

IQAN-MD4 Technical Specifications

General

• Weight (MD4-7): 0.93 kg

• Weight (MD4-5): 0.67 kg

• Weight (MD4-10): 1.5 kg

• Operating temperature: −30 °C to +70 °C

• Storage temperature: −40 °C to +85 °C

• Protection rating: IP65

• Voltage supply: 9–32 Vdc

• Current consumption (idle): 300 mA (28 Vdc), 600 mA (14 Vdc)

• CE marking: 2004/108/EC

Performance

• Processor: ARM Cortex-A8 (800 MHz)

• Memory: 2 Gbyte Flash, 256 Mbyte SDRAM

• Logging memory: 64 Mb

• Cycle time: 10 to 100 ms

• Software tools: IQANdesign platform

Communication Interface

• CAN (ISO 11898): 4 (2) ports

• Protocols: ICP, SAE J1939, generic

• Ethernet: 2 (1) ports, 100Base-TX

Display

• Touch Interface: PCAP

• 7” (18 cm) display: 16:9, 800×480 pixels

• 5.7” (14 cm) display: 4:3, 640×480 pixels

• 10.1” (26 cm) display: 4:3, 800×600 pixels

Connection

• Electrical connection: 2x Deutsch DTM, 12 pos

• Ethernet: 2 x M12, D-code, 4 pos

Outputs

• Digital outputs: 43

• Type	Low side

• Max load, 1 output	300 mA

• Max load, all outputs	850 mA

Inputs

• Voltage inputs: 23 (0–5 Vdc, 12 bit)

• Digital inputs: 103

• Encoder input: 13 (0–500 Hz, 50/50 signal)
