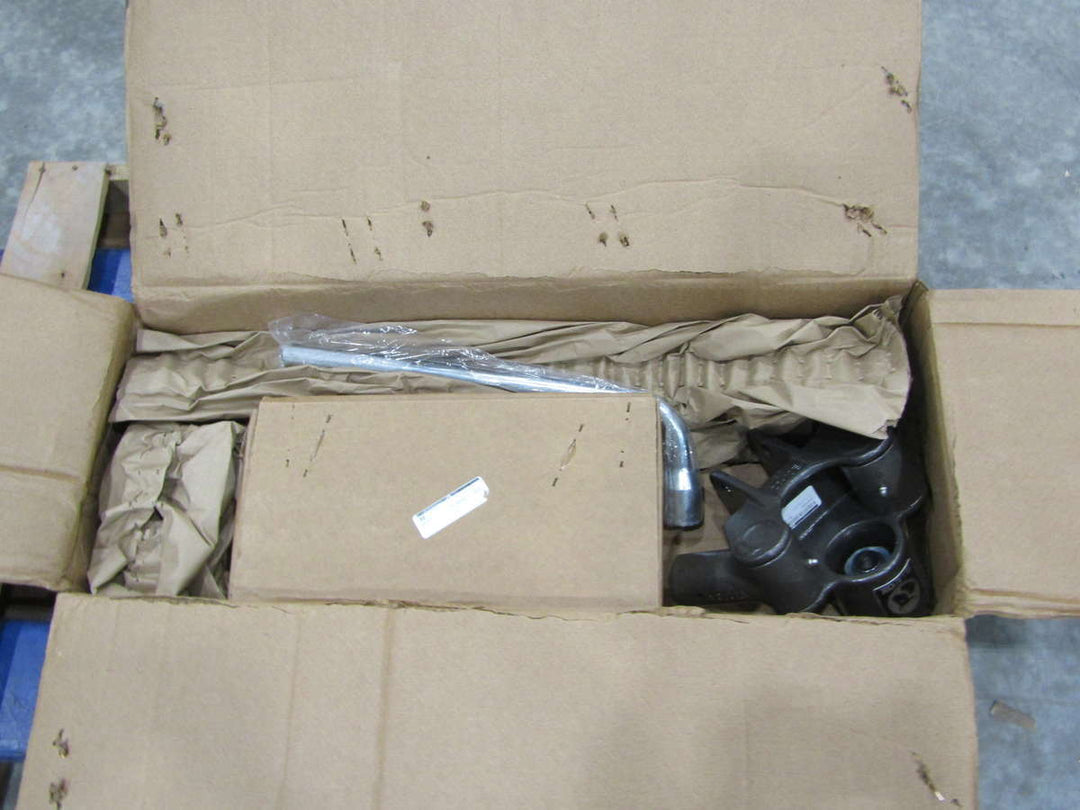

PN: BXW1000 | Genuine Blue Ox® Weight Distribution w/ Sway Control 10,000 - 1,000 lbs

Specs

• Tongue weight: 750 lbs - 1,000 lbs
• Gross towing weight: 10,000 lbs
• Application:
  • 2" x 2" Trailer hitch receivers rated for use with weight distribution systems
  • Trailers with frame height between 3" and 6"
• Ball size: 2-5/16"
• Lift-bracket positioning: mount about 29" back from hitch ball
• Shank length:
  • 9" From center of hitch pin hole to center of adjustment holes
  • 10" From center of hitch pin hole to front of shank
  • 8" From center of hitch pin hole to back of shank
  • 13" Overall
• Total height adjustment along shank: 8-3/4"
  • Maximum rise: 8"
  • Maximum drop: 2"
  • Overall height: 10"
  • Holes are spaced 1-1/4" apart on center
• Limited lifetime warranty
